(11) Disassemble nuts in Figure 6-21.

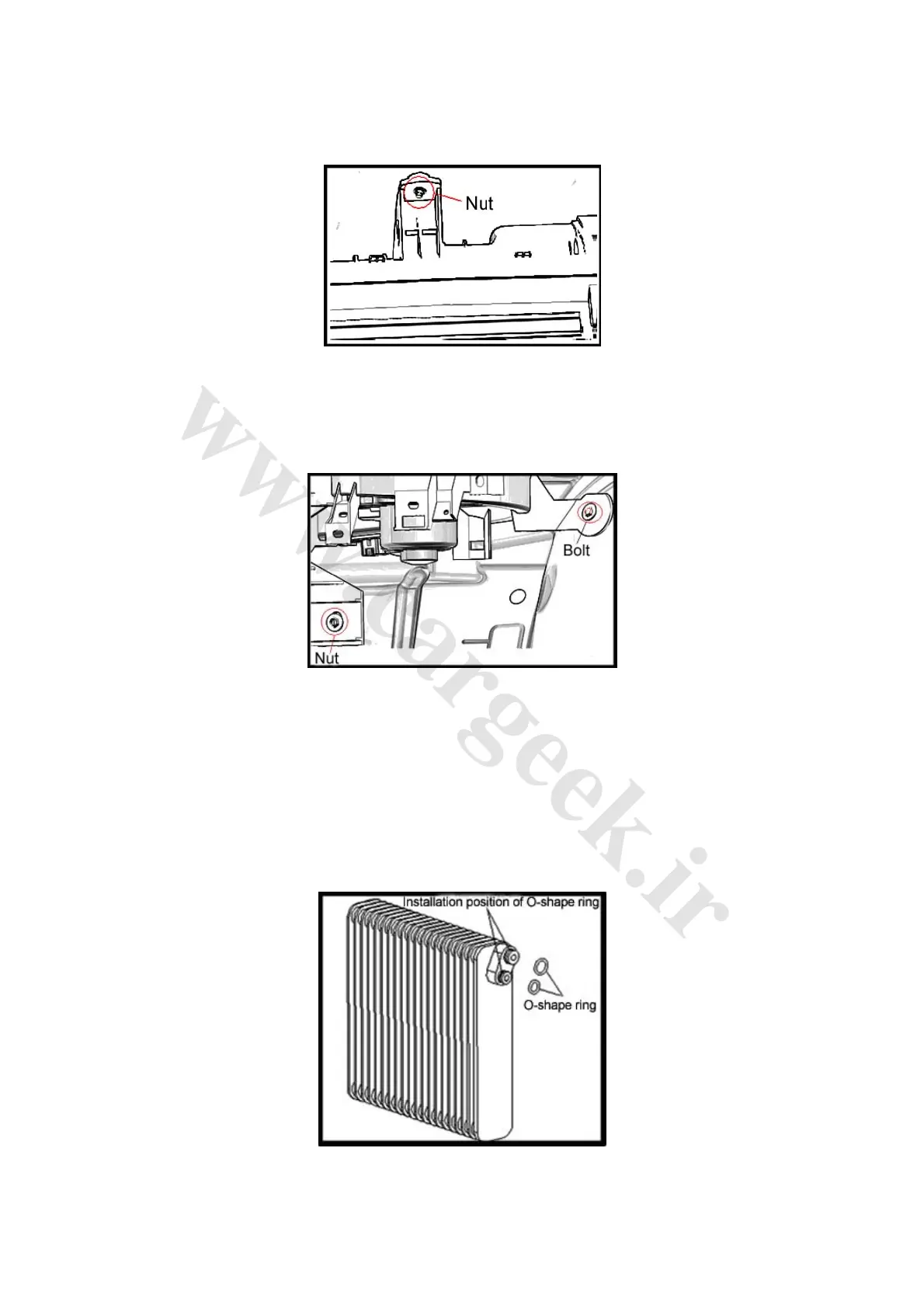

Figure 6-21
(12) Disassemble bolts and nuts in the following figure, then the air conditioner housing can be
taken out. See Figure 6-22.
Figure 6-22
(13) Disassemble evaporator unit assembly.
1) Disassemble the inlet and outlet cover board of evaporator
2) Take off 2 inlet and outlet pipes and their retaining clamps as well as expansion valves
3) Disassemble the right pipe plate of evaporator
4) Evaporator can be taken out
5) Disassemble 2 O-shape rings from evaporator core (Figure 6-23)
Figure 6-23
