8 Enter the measured calibration length (for example 75 mm) and touch the Save
button. The printer calculates the encoder pitch from the entered measurement and
displays the Calculate Encoder Pitch screen. The printer displays the calculated
encoder pitch in the “Encoder Pitch Information” box.

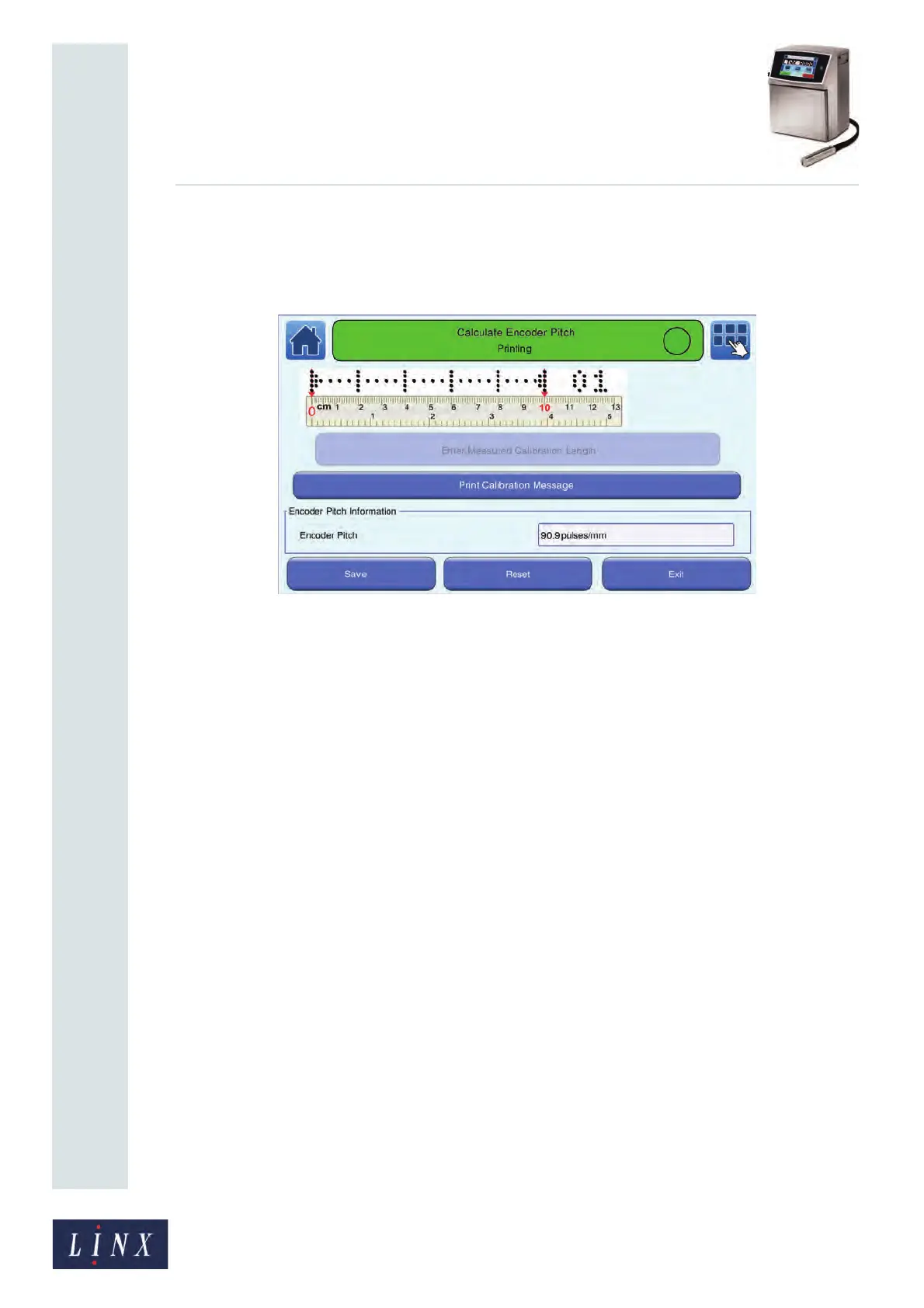

Figure 70. Calculate Encoder Pitch: encoder pitch calculated screen
9 Touch the Stop button to pause the print or touch the Reset button to return to the
previous encoder pitch value. Touch the Save button to save the new calculated
encoder pitch.
5.4 24 V and VFC alarms
The printer can use two alarm connections, a 24 V alarm connection and a volt-free contact
(VFC) alarm connection. The alarms control internal alarm tones and alarm output signals.
You can use the alarm output signals to control external alarm beacons.
NOTE: The VFC alarm is a configurable option on the 8900 printer.
5.4.1 24 V alarm
You can use the 24 V alarm to indicate a range of system events, for example, Faults and
Warnings. The alarm operates in one of the following modes:
• Continuous—the alarm is turned on and remains on until the alarm condition is
cleared.
• Pulsed Continuous—the alarm pulses continuously until the alarm condition is
cleared.
• Pulsed—the alarm pulses twice if an alarm condition occurs.
• None—no alarm is set.
You can use any of the alarm indication modes to indicate any alarm condition.
