Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 113
Active area is specified in sensor coordinates, rather
than in system coordinates. As a result, if the sensor
is already alignment calibrated, press the Acquire
button to display uncalibrated data before
configuring the active area. See Coordinate Systems
on page 54 for more information on sensor and
system coordinates.

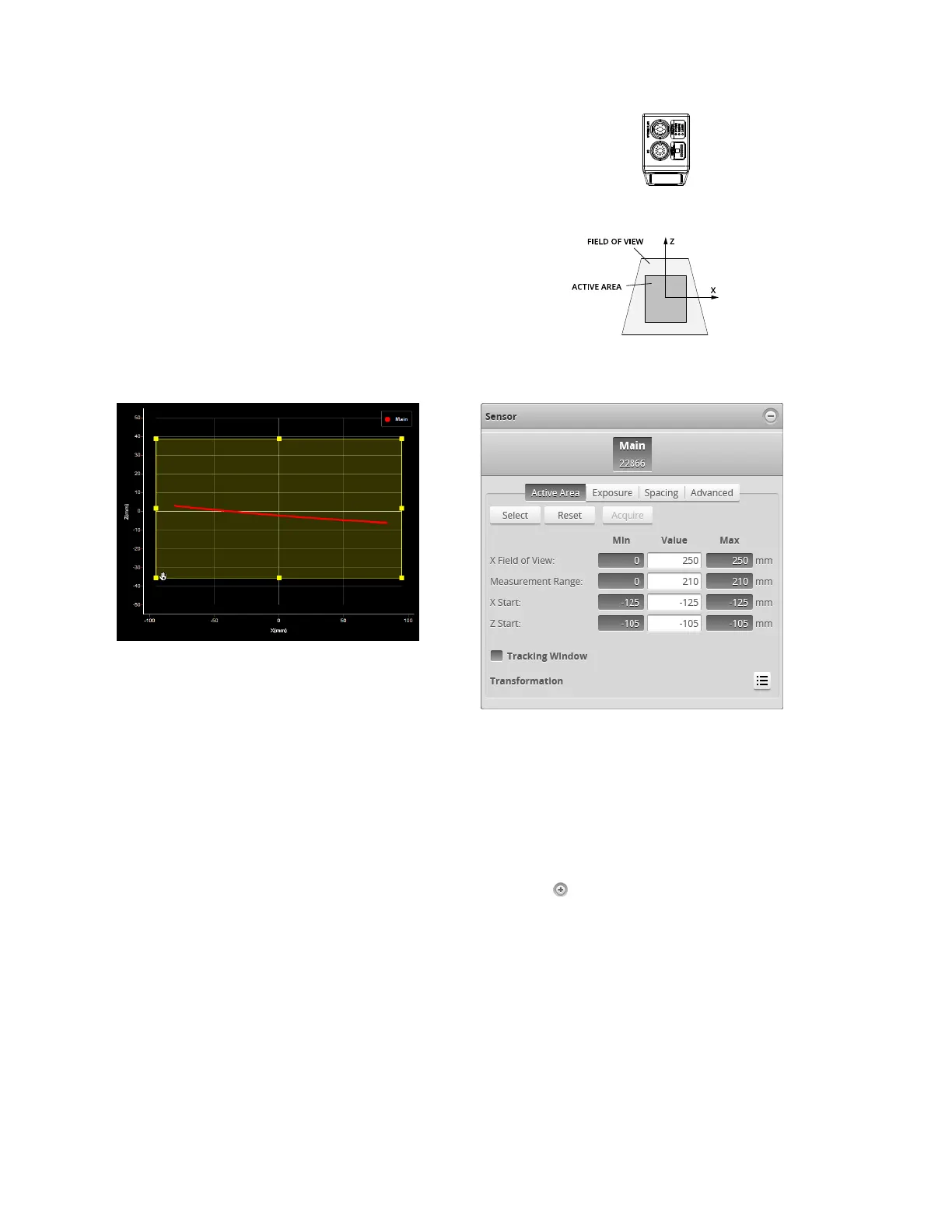

To set the active area:
1. Go to the Scan page.
2. Choose Profile or Surface mode in the Scan Mode panel, depending on the type of measurement
whose decision you need to configure.
If one of these modes is not selected, tools will not be available in the Measure panel.
3. Expand the Sensor panel by clicking on the panel header or the button.
4. Click the button corresponding to the sensor you want to configure.
The button is labeled Top, Bottom, Top-Left, or Top-Right, depending on the system.
Active area is specified separately for each sensor.
5. Click on the Active Area tab.
6. Click the Select button.
7. Click the Acquire button to see a scan while setting the active area.
