A measurement must be enabled in the other tool for it to be available as an anchor. The anchor
measurement should also be properly configured before using it as an anchor.
For more information on anchoring, see Measurement Anchoring on page 194.

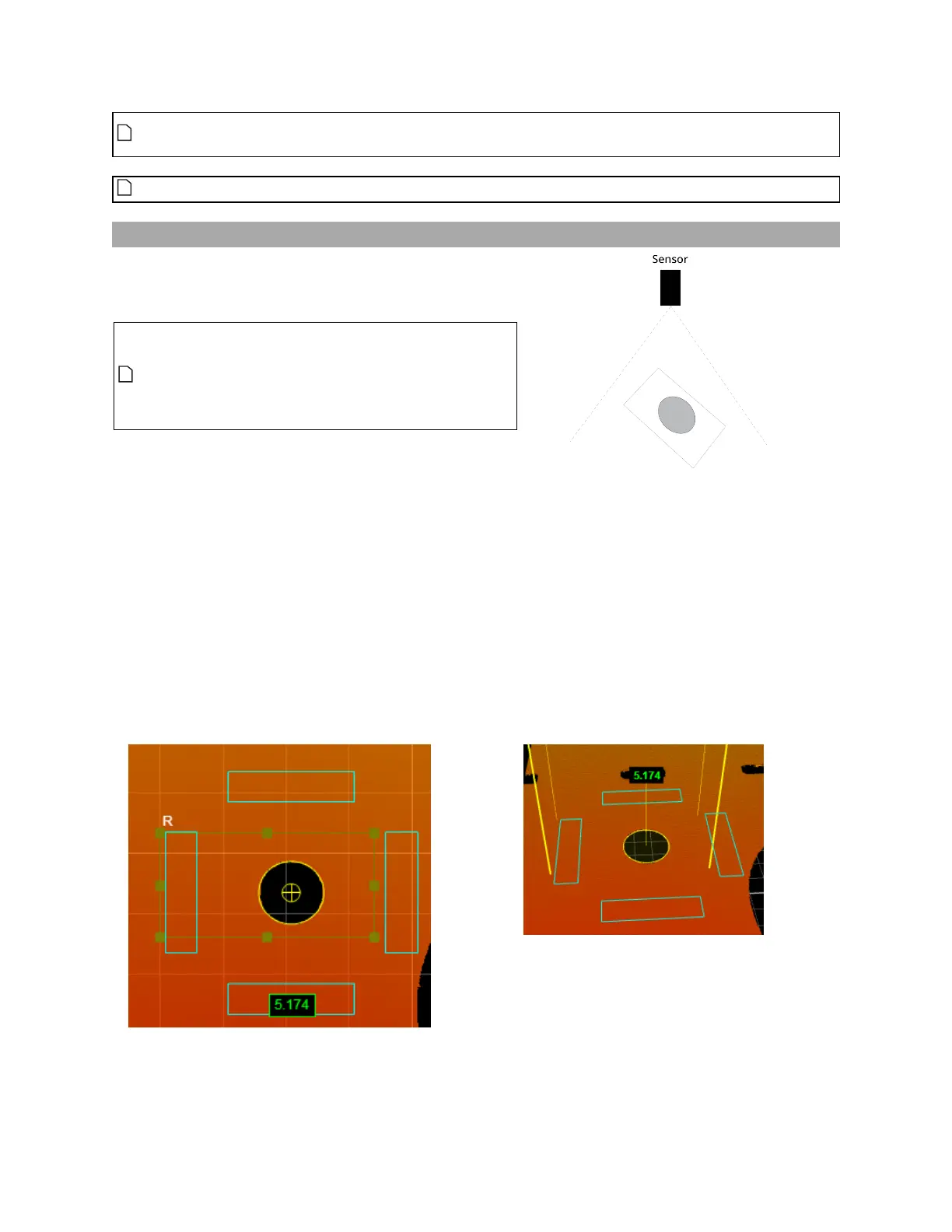

Hole
The Hole tool measures a circular opening within a region
of interest on the surface and returns its position and
radius.
The Hole tool does not search for or detect a
hole. The tool expects that a hole conforming
reasonably well to the defined parameters is
present and that it is on a sufficiently uniform
background.
See Adding and Configuring a Measurement Tool on page
182 for instructions on how to add measurement tools.
The hole can be on a surface at an angle to the sensor.
The tool uses a complex feature-locating algorithm to find
a hold and then return measurements. See "Hole
Algorithm" in the Gocator Measurement Tool Technical
Manual for a detailed explanation of the algorithm. The
behavior of the algorithm can be adjusted by changing the
parameters in the measurement panel.
Gocator compares the measurement value with the values
in Min and Max to yield a decision. For more information
on decisions, see Decisions on page 191.
