Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 215
Anchor Description
X or Z Lets you choose the X or Z measurement of another tool to
use as a positional anchor for this tool.
Anchoring
A measurement must be enabled in the other tool for it to be available as an anchor. The anchor
measurement should also be properly configured before using it as an anchor.
For more information on anchoring, see Measurement Anchoring on page 194.

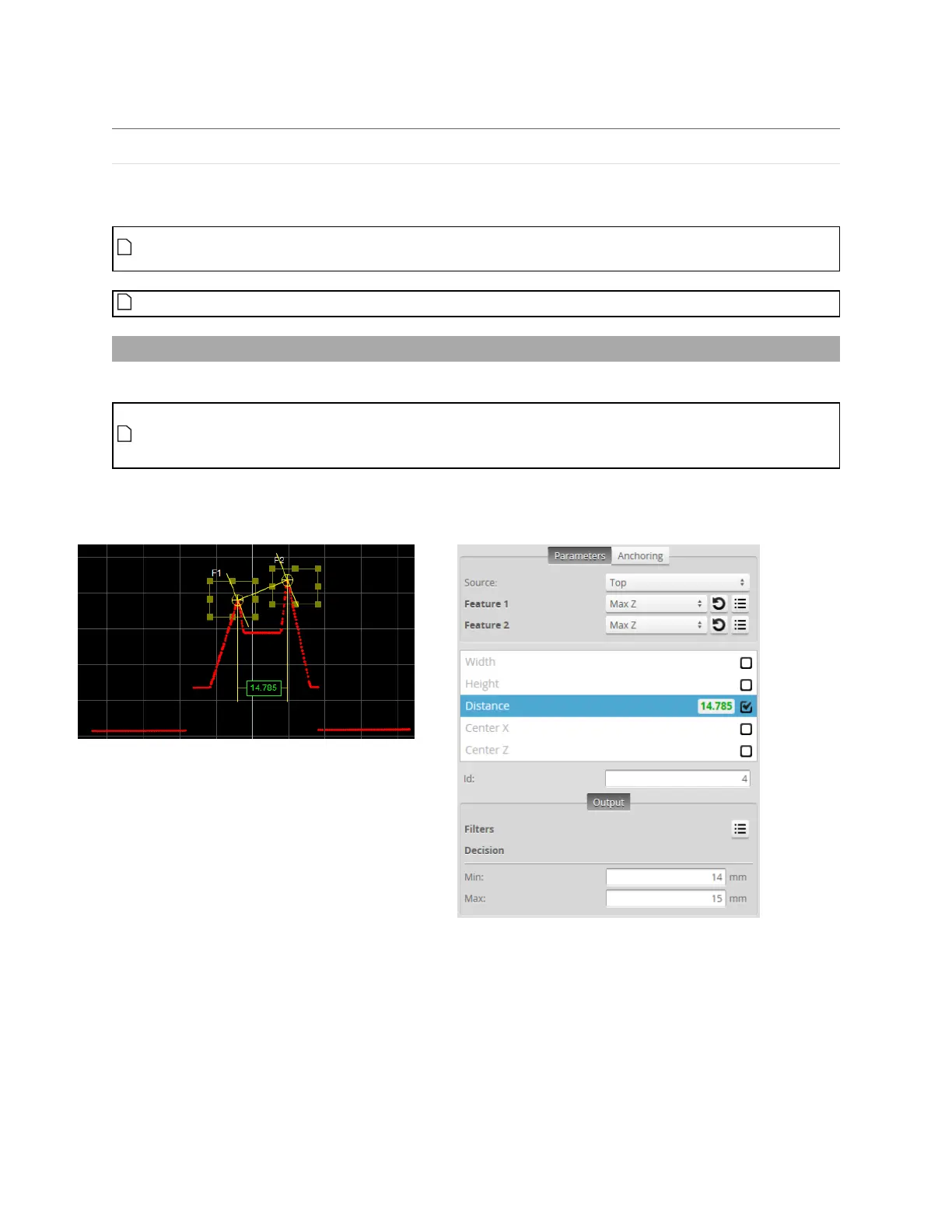

Dimension
The Dimension tool provides Width, Height, Distance, Center X, and Center Zmeasurements.
The DimensionPositionScript tool can be used whether Uniform Spacing is enabled or not, that
is, with either resampled or unresampleddata. For more information on the Uniform Spacing
setting and resampled data, see Spacing (Data Resampling) on page 59.
See Adding and Configuring a Measurement Tool on page 182 for instructions on how to add
measurement tools.
The tool's measurements require two feature points. See Feature Points on page 187 for information on
point types and how to configure them.
