Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 70
Element Description
1 Manage page Contains settings for sensor system layout, network, motion and
alignment, handling jobs, and sensor maintenance. See Management and
Maintenance on page 81.
2 Scan page Contains settings for scan mode, trigger source, detailed sensor
configuration, and performing alignment. See Scan Setup and Alignment on
page 103.
3 Model page Lets you set up sections and part matching. See Models on page 159
4 Measure page Contains built-in measurement tools and their settings. See Measurement
on page 180.
5 Output page Contains settings for configuring output protocols used to communicate
measurements to external devices. See Output on page 318.
6 Dashboard page Provides monitoring of measurement statistics and sensor health. See
Dashboard on page 330.
7 CPULoad and Speed Provides important sensor performance metrics. See Metrics Area on page
78.
8 Toolbar Controls sensor operation, manages jobs, and filters and replays
recorded measurement data. See Toolbar below.
9 Configuration area Provides controls to configure scan and measurement tool settings.
10
Data viewer
Displays sensor data, tool setup controls, and measurements. See Data
Viewer on page 144 for its use when the Scan page is active and on page
181 for its use when the Measure page is active.
11
Status bar
Displays log messages from the sensor (errors, warnings, and other
information) and frame information, and lets you switch the interface
language. For more information,

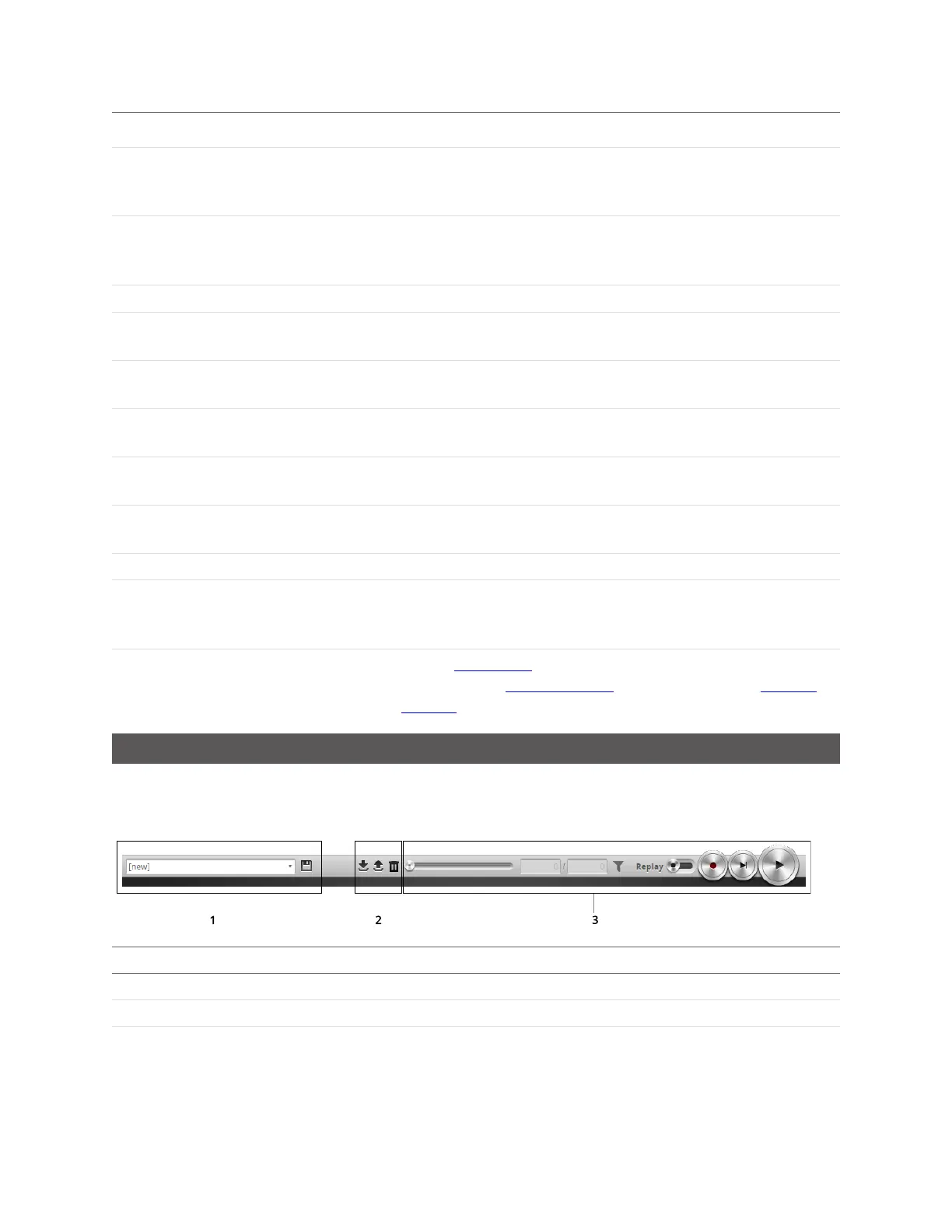

Toolbar
The toolbar is used for performing operations such as managing jobs, working with replay data, and
starting and stopping the sensor.
Element Description
1 Job controls For saving and loading jobs.
2 Replay data controls For downloading, uploading, and exporting recorded data.
3 Sensor operation / replay control Use the sensor operation controls to start sensors, enable and
filter recording, and control recorded data.
