Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 190
Point Line
Center Point Intersect Corner Error Min
Point
Error Max Point Line Base
Tool
Area X
Bounding
Box
X X
Circle X
Dimension
Groove
Intersect X X X
Line X X X
Panel
Position X
Round
Corner
Strip

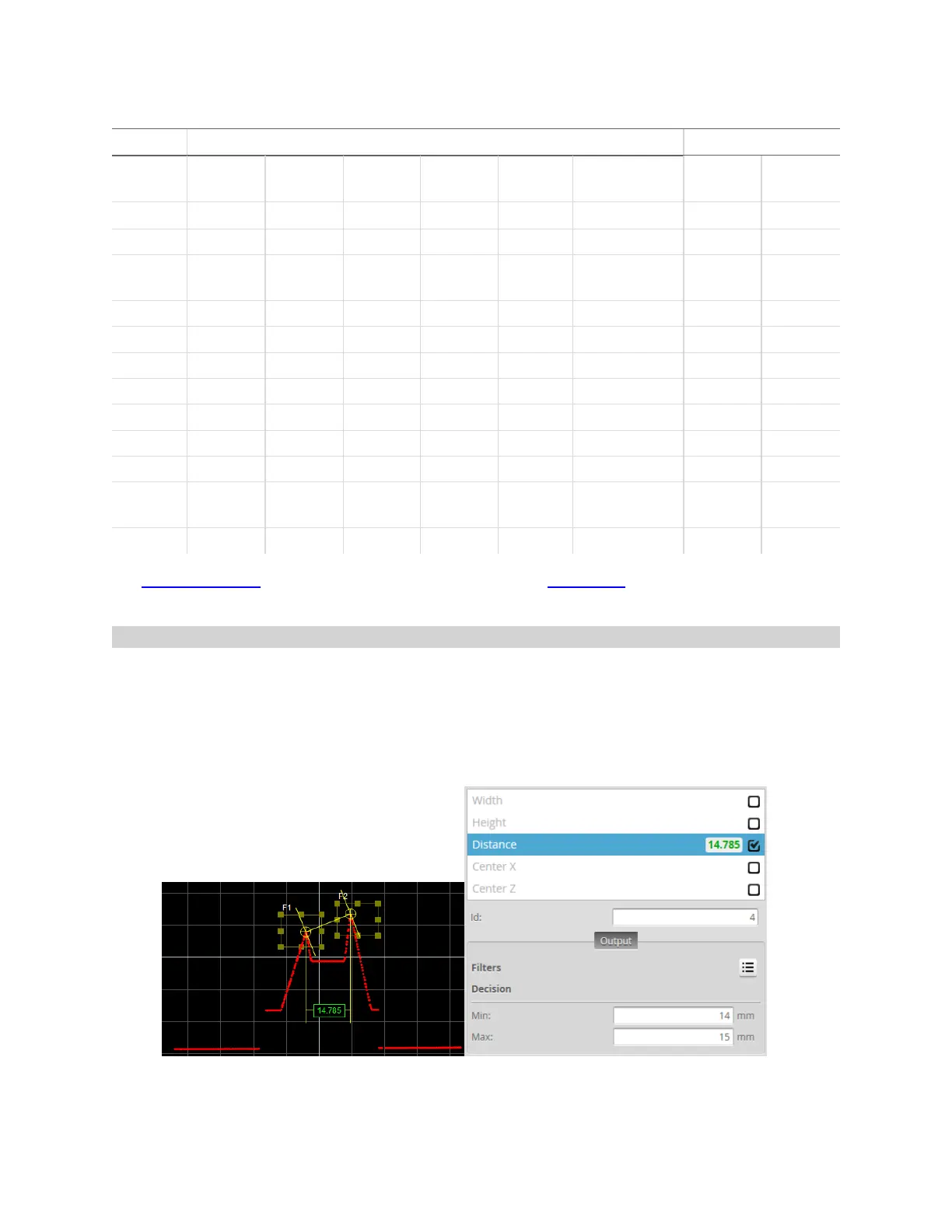

Geometric features generated by Profile tools
The Feature Intersect tool can also produce an intersect point. Script tools do not currently take
geometric features as input.
Decisions
Results from a measurement can be compared against minimum and maximum thresholds to generate
pass / fail decisions. The decision state is pass if a measurement value is between the minimum and
maximum threshold. In the data viewer and next to the measurement, these values are displayed in
green. Otherwise, the decision state is fail. In the user interface, these values are displayed in red.
All measurements provide decision settings under the Output tab.
Value (14.785) within decision thresholds (Min: 14, Max: 15). Decision: Pass
