Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 234

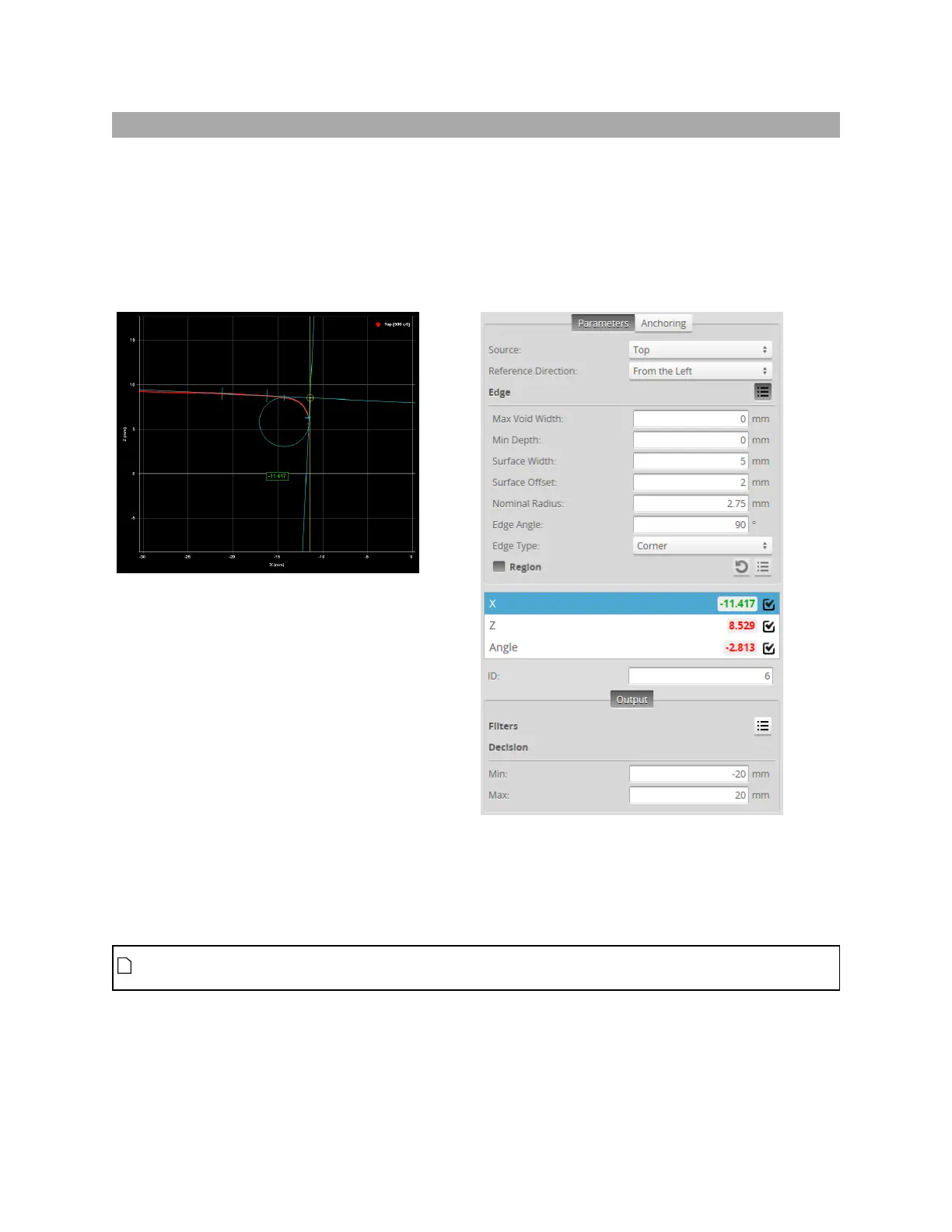

Round Corner
The Round Corner tool measures corners with a radius, returning the position of the edge of the corner
and the angle of adjacent surface with respect to the X axis.
Gocator compares the measurement value with the values in Min and Max to yield a decision. For more
information on decisions, see Decisions on page 191.
See Adding and Configuring a Measurement Tool on page 182 for instructions on how to add
measurement tools.
The Round Corner tool uses a complex feature-locating algorithm to find the edge and return
measurements. The behavior of the algorithm can be adjusted by changing the parameters in the
measurement panel. See "Gap and Flush Algorithm" in the Gocator Measurement Tool Technical Manual
for a detailed explanation of the algorithm.
You must make sure that there are enough data points to define the edge (proper exposure,
etc.). If not, the algorithm will not function.
