Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 214
Measurements, Features, and Settings

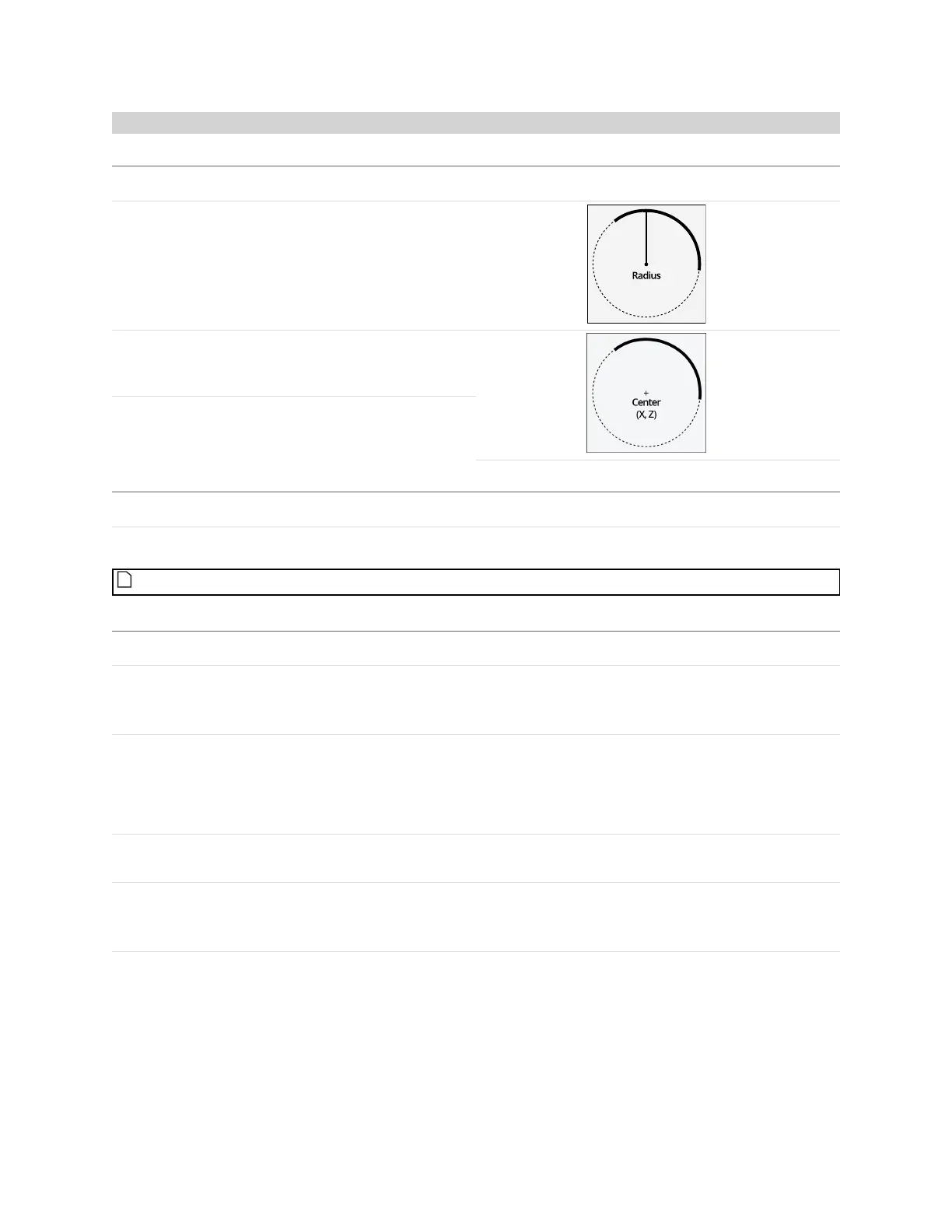

Measurement Illustration
Radius
Measures the radius of the circle.
X
Finds the circle center position in the X axis.
Z
Finds the circle center position in the Z axis.
Measurements
Type Description
Center Point
The center point of the fitted circle.
Features
For more information on geometric features, see Geometric Features on page 190.
Parameter Description
Source The sensor, or combination of sensors, that provides data
for the tool's measurements. For more information, see
Source on page 183.
Stream The data that the tool will apply measurements to.
In Surface mode, this setting is only displayed when a
section is defined on the surface data.
For more information on sections, see Sections on page 174.
Region The region to which the tool's measurements will apply. For
more information, see Regions on page 184.
Filters The filters that are applied to measurement values before
they are output. For more information, see Filters on page
192.
Decision The Max and Min settings define the range that determines
whether the measurement tool sends a pass or fail decision
to the output. For more information, see Decisions on page
191.
