Gocator Line Profile Sensors: User Manual
Getting Started • 35

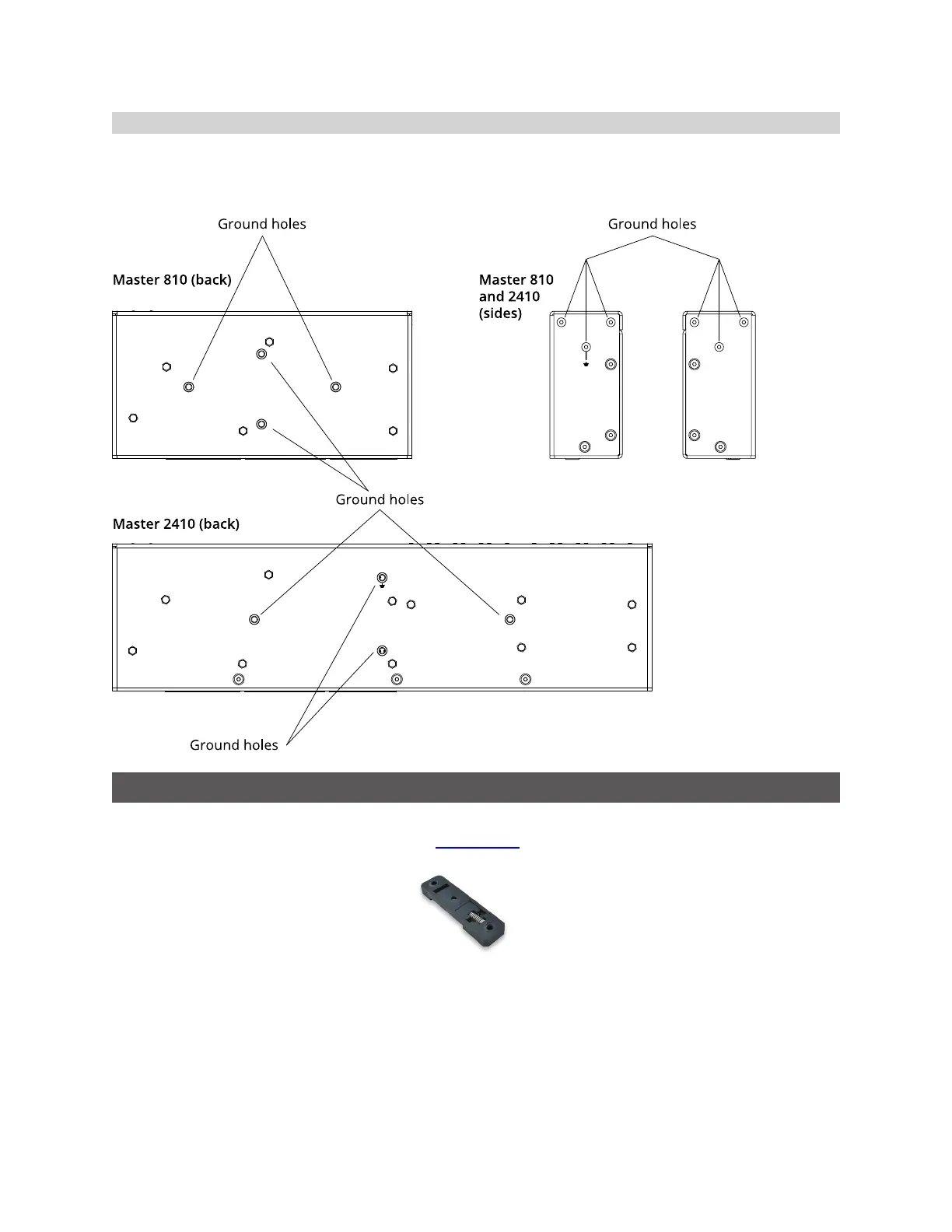

Grounding When Using a DIN Rail (Master 810/2410)
If you are using DIN rail adapters instead of the rack mount brackets, you must ensure that the Master is
properly grounded by connecting a ground cable to one of the holes indicated below. The holes accept
M4x5 screws.
Installing DIN Rail Clips: Master 810 or 2410
You can mount the Master 810 and 2410 using the included DINrail mounting clips with M4x8 flat
socket cap screws. The following DINrail clips (DINM12-RC) are included:
To install the DINrail clips:
1. Remove the 1Urack mount brackets.
2. Locate the DINrail mounting holes on the back of the Master (see below).
Master 810:
