Gocator Line Profile Sensors: User Manual
Getting Started • 39

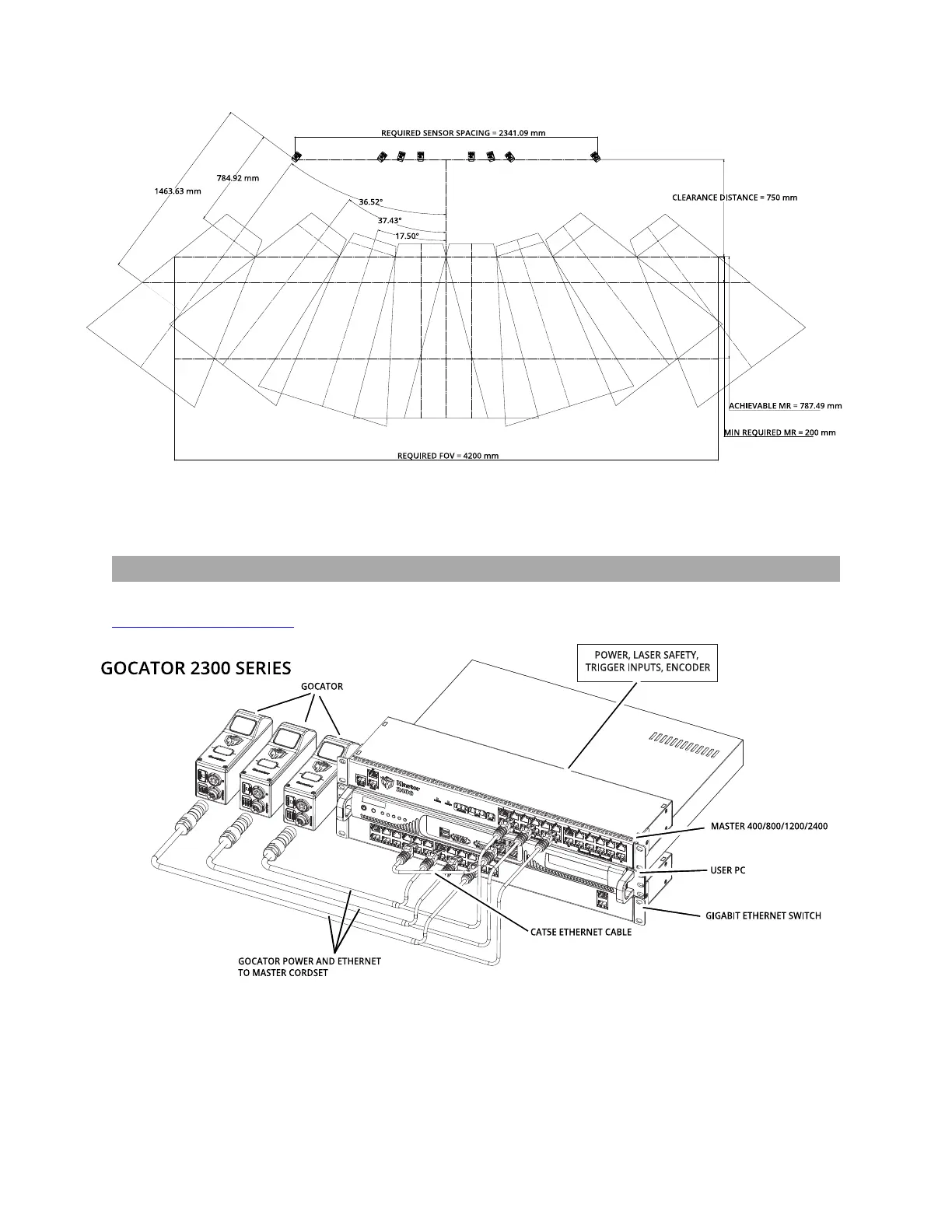

The diagram above shows the clearance distance and measurement range required in a typical setup.
Use the specification estimator (Gocator-2375_Specification_Estimator.xlsx) to calculate the X and Z
resolution of the sensors with different combinations of clearance distance and measurement range.
System Setup
A typical Gocator 2375 system is set up as a multi-sensor system. The sensors are powered using a
Master network controller (excluding Master 100).
To connect a Gocator 2375:
1. Connect the Power and Ethernet to Master cordset to the Power/LAN connector on the sensor.
