Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 235

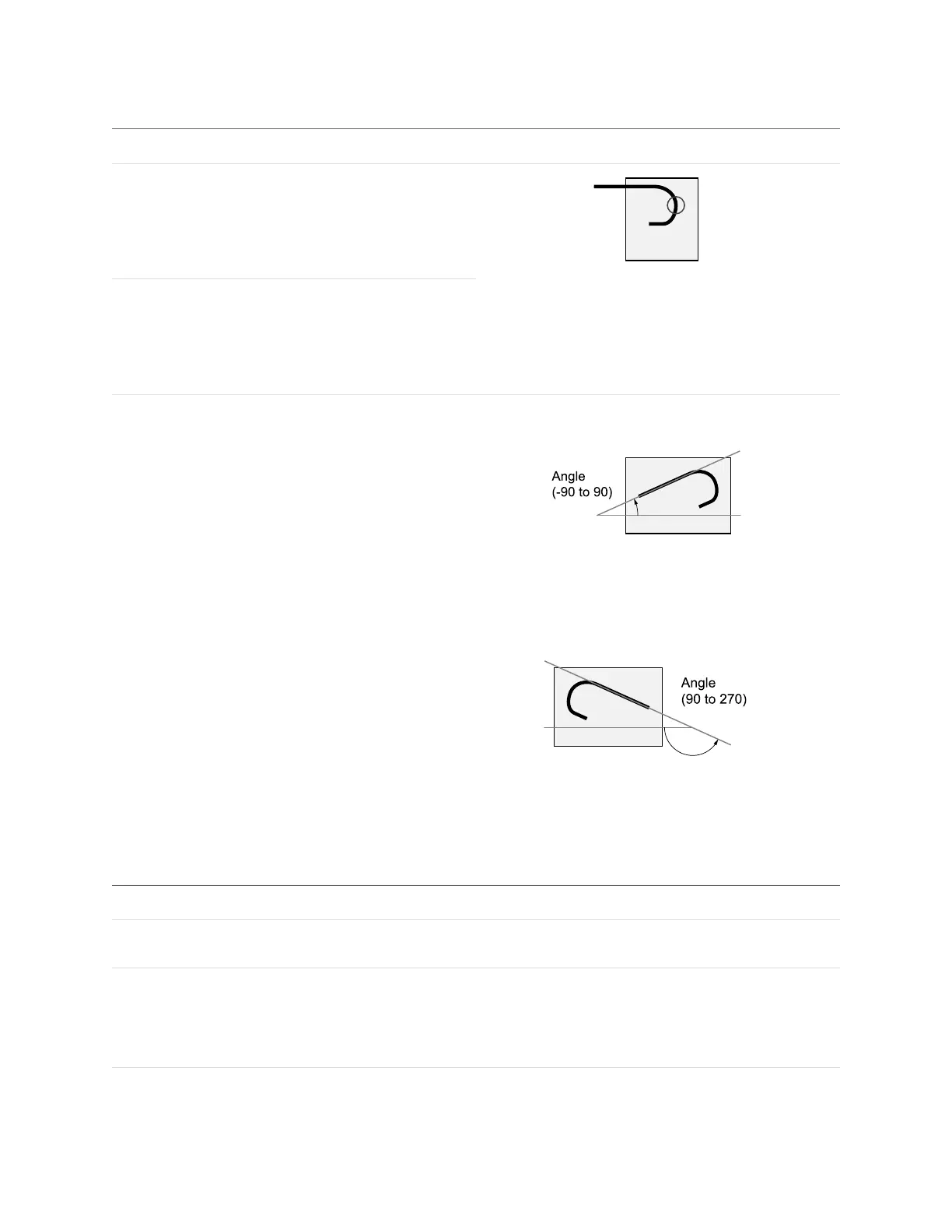

Measurement Illustration
X
Measures the X position of the location where the tangent
touches the edge, or intersect of the tangent and the line
fitted to the surface used by the measurement (see
Reference Side, below).
Z
Measures the Z position of the location where the tangent
touches the edge, or intersect of the tangent and the line
fitted to the surface used by the measurement (see
Reference Side, below).
Angle
Measures the angle of the line fitted to the surface next to
the corner (see Reference Side, below), with respect to the
x-axis. Left edge angles are from -90 to 90. Right edge
angles are from 90 to 270.
Measurements
Parameter Description
Source The sensor, or combination of sensors, that provides data for the tool's measurements. For
more information, see Source on page 183.
Stream The data that the tool will apply measurements to.
In Surface mode, this setting is only displayed when a section is defined on the surface
data.
For more information on sections, see Sections on page 174.
Parameters
