Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 127
To prepare for alignment:
1. Choose an alignment reference in the Manage page if you have not already done so.
See Alignment Reference on page 93 for more information.
2. Go to the Scan page.
3. Choose a mode other than Video mode in the Scan Mode panel.
If Video mode is selected, tools will not be available in the Measure panel.

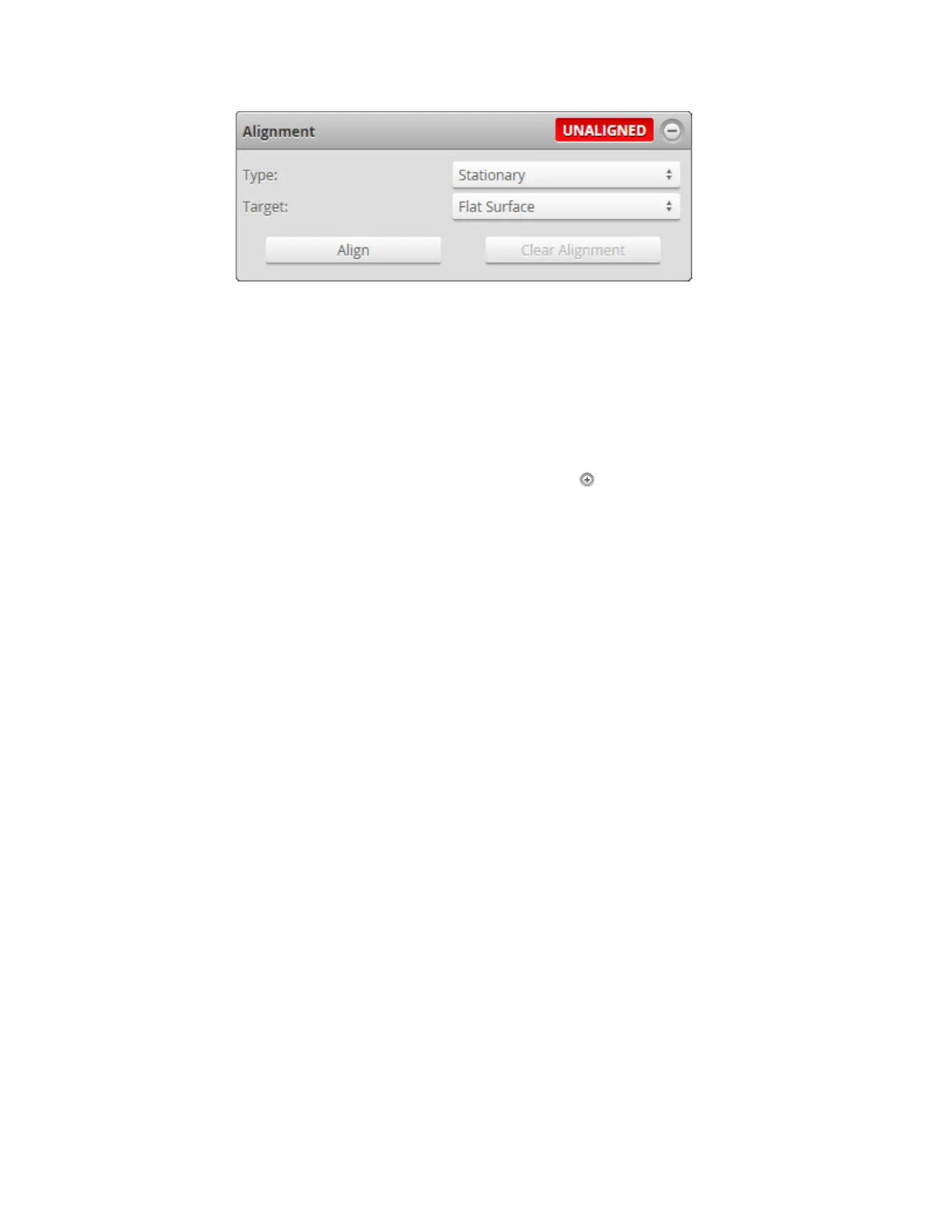

4. Expand the Alignment panel by clicking on the panel header or the button.
5. Ensure that all sensors have a clear view of the target surface.
Remove any irregular objects from the sensor's field of view that might interfere with alignment. If
using a bar for a dual- or multi-sensor system, ensure that the lasers illuminate a reference hole on the
bar.
To perform stationary alignment:
1. In the Alignment panel, select Stationary as the Type.
2. Clear the previous alignment if present.
Press the Clear Alignment button to remove an existing alignment.s
3. Select an alignment Target.
l Select Bar to use a custom calibration bar. If using a calibration bar, specify the bar dimensions
and reference hole layout. See Calibration Targets on page 27 for details.
Configure the characteristics of the target.
To Next Page
