Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 162
1. Scan a reference part (you can also use replay data that you have previously saved).
2. Create a model based on the scan (using either heightmap or intensity data).
3. Adjust the model (edge detection algorithm sensitivity and selective removal of edge points).
4. Scan another part typical of the parts that would need to match the model.
5. Adjust the target sensitivity.
6. Set match acceptance level.

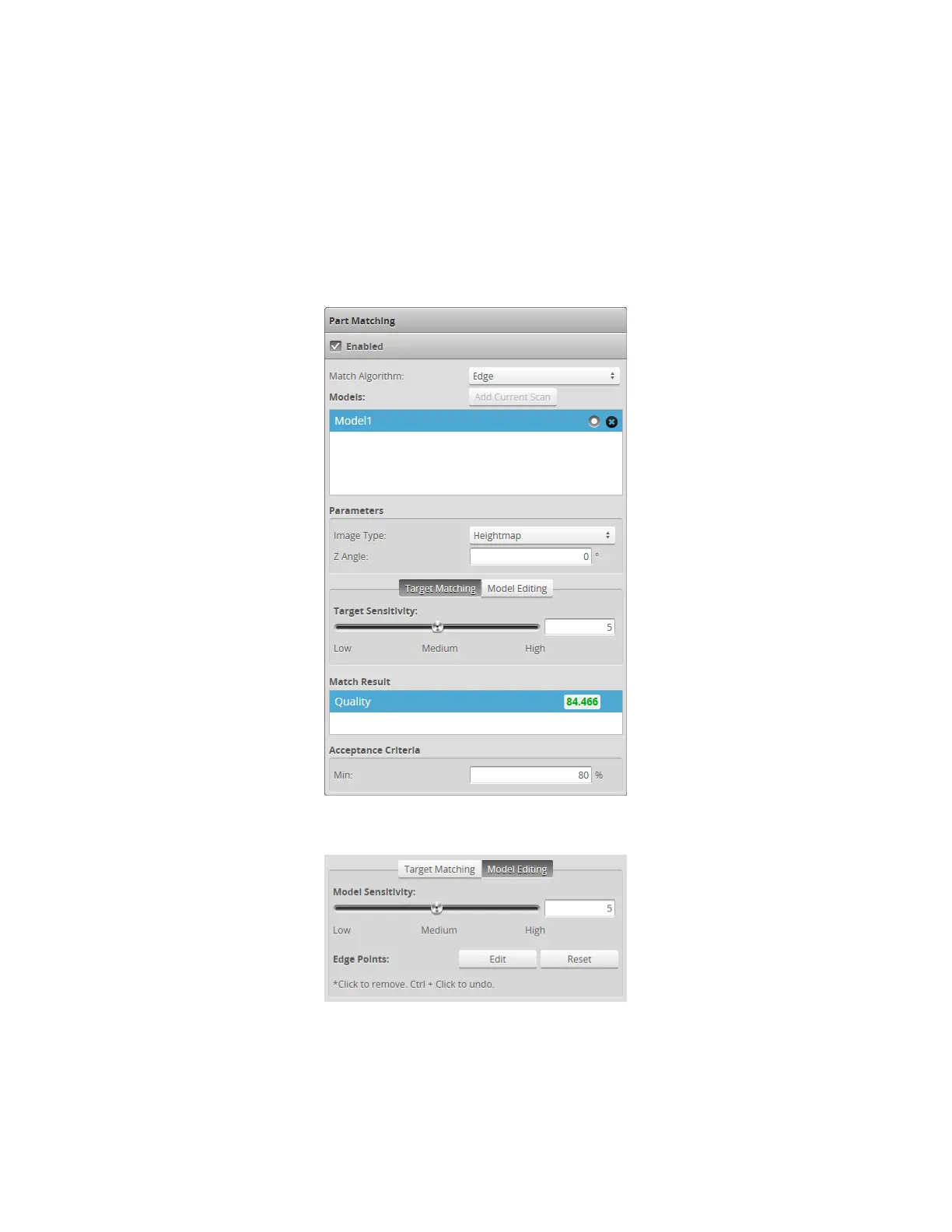

Part Matching panel showing Target Matching tab
Model Editing tab on Part Matching panel
The following settings are used to configure part matching using edge detection.
