Gocator Line Profile Sensors: User Manual

Gocator Web Interface • 194

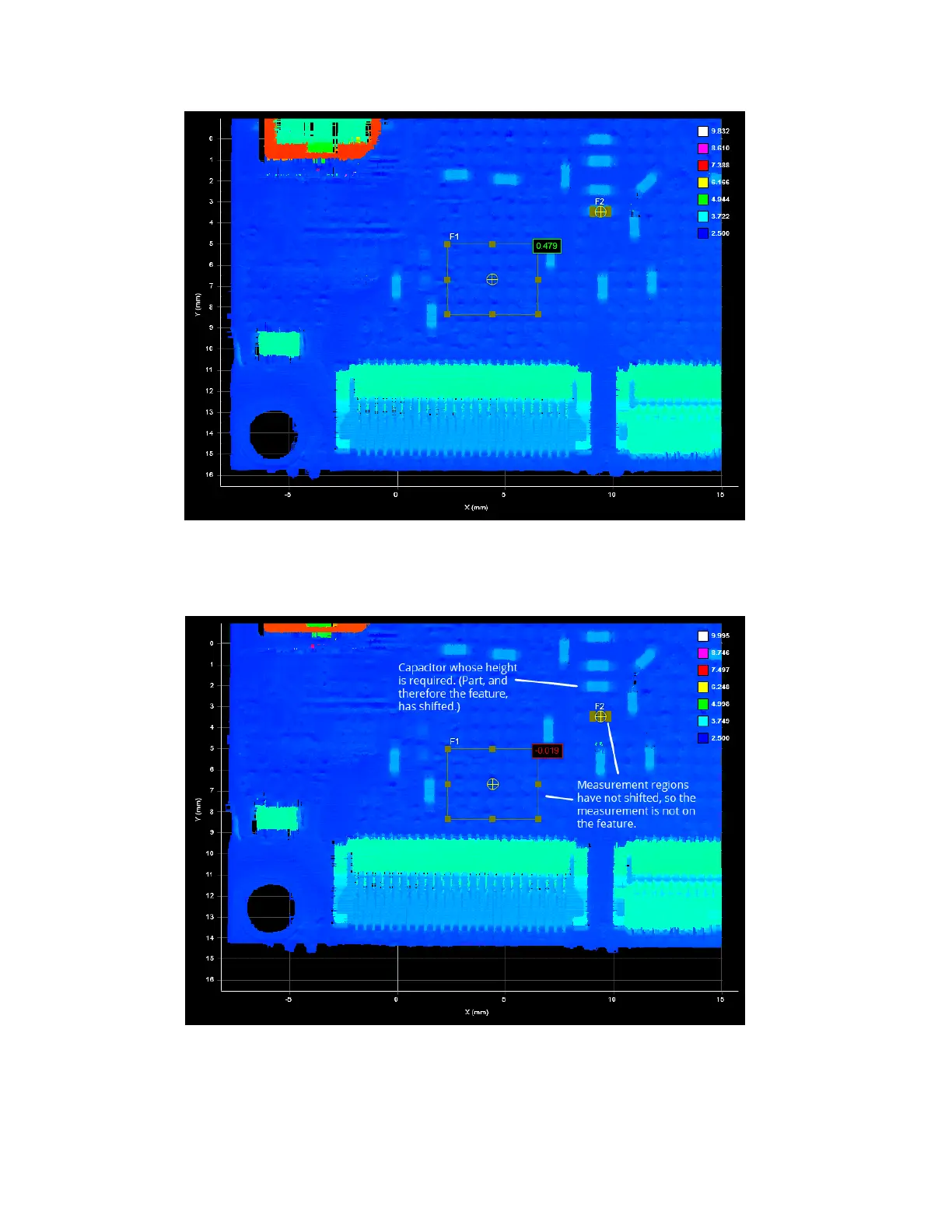

In the following scan, the part has shifted, but the measurement regions remain where they were

originally configured, in relation to the sensor or system coordinate system, so the measurement

returned is incorrect:

Copyright2
