Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 207
Measurement Illustration

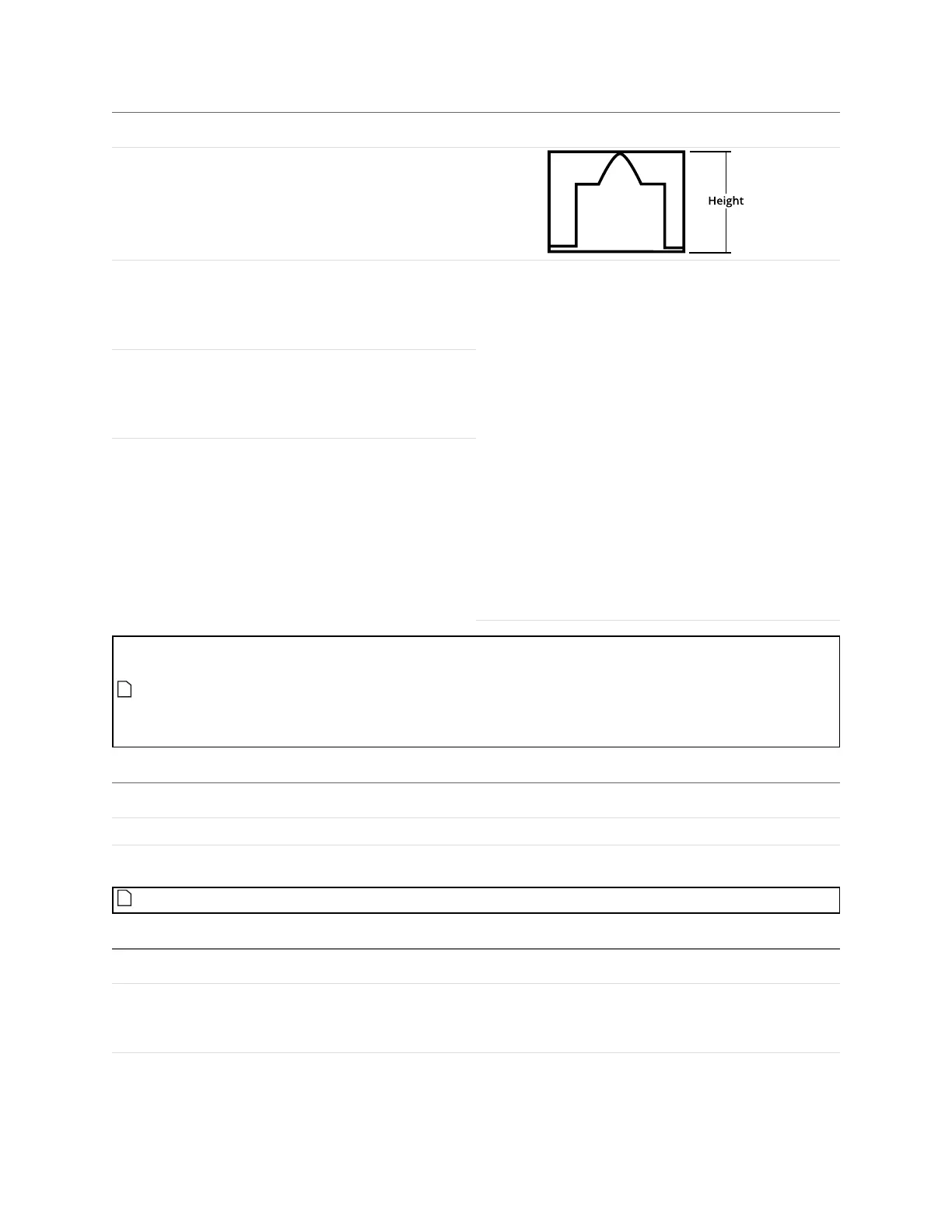

Height
Determines the height (thickness) of the bounding box that
contains the profile.
Global X
*
Determines the X position of the center of the bounding
box that contains the profile relative to the surface from
which the profile is extracted.
Global Y
*
Determines the Yposition of the center of the bounding
box that contains the profile relative to the surface from
which the profile is extracted.
Global Angle
*
Determines the angle around Zof the section used to create
the profile, relative to the surface from which it is extracted,
where a line parallel to the X axis is 0 degrees.
Angles of sections pointing to the bottom of the data viewer
are positive.
Angles of sections pointing to the top of the data viewer are
negative.
*The Global X, Global Y, and Global Angle measurements are intended to be used with profiles
extracted from a surface using a section.
When used with profiles not generated from a section, the Global X measurement returns the
same value as the X measurement, and the Global Yand Global Angle measurements return
0.000.
Type Description
Center Point
The center point of the bounding box.
Corner Point
The lower left corner of the bounding box.
Features
For more information on geometric features, see Geometric Features on page 190.
Parameter Description
Source The sensor, or combination of sensors, that provides data
for the tool's measurements. For more information, see
Source on page 183.
Parameters
To Next Page
