Gocator Line Profile Sensors: User Manual

Getting Started • 24

See Master 100 on page 625 for pinout details.

Master 400 / 800 / 1200 / 2400

The Master 400, 800, 1200, and 2400 network controllers let you connect more than two sensors:

l Master 400: accepts four sensors

l Master 800 accepts eight sensors

l Master 1200:accepts twelve sensors

l Master 2400:accepts twenty-four sensors

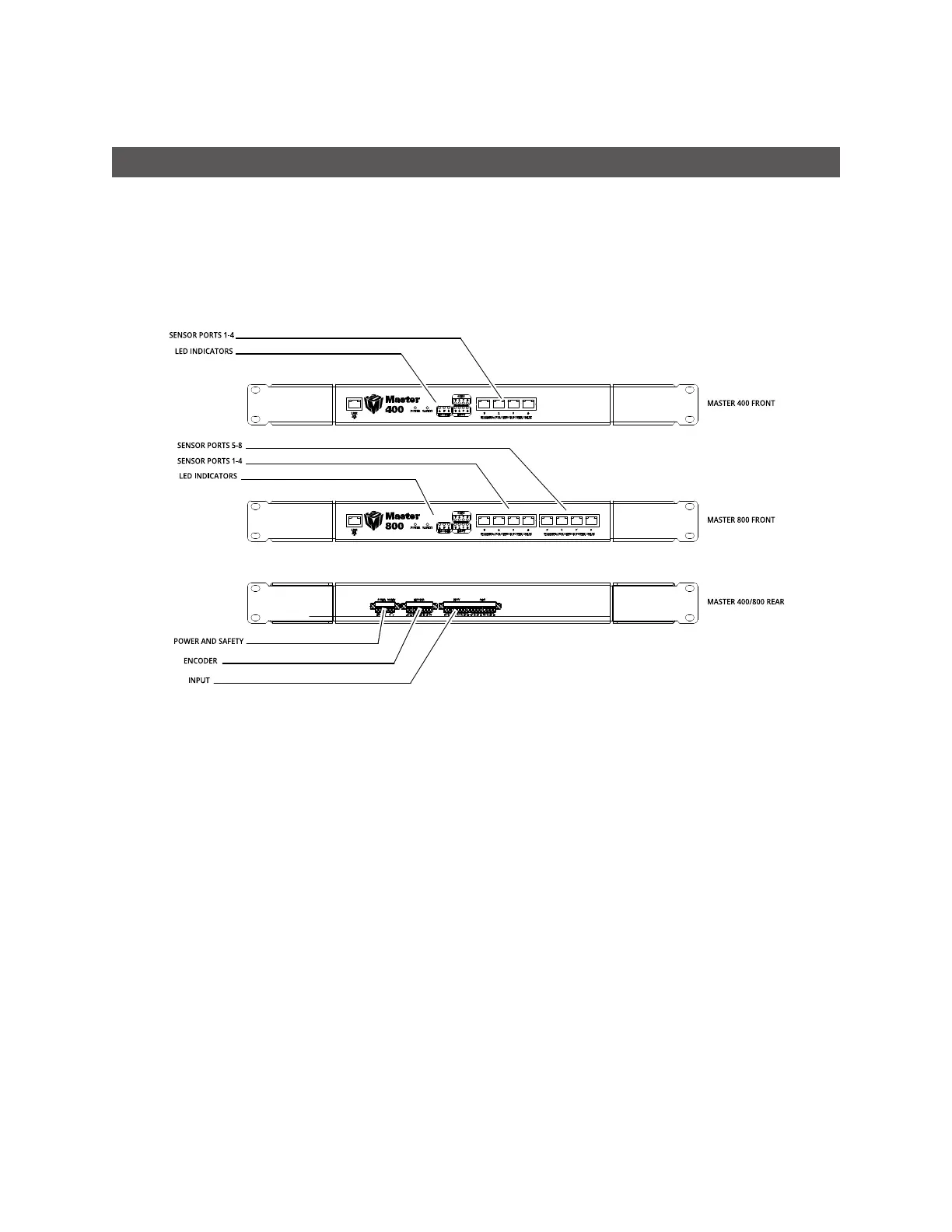

Master 400 and 800
