Gocator Line Profile Sensors: User Manual
Getting Started • 26

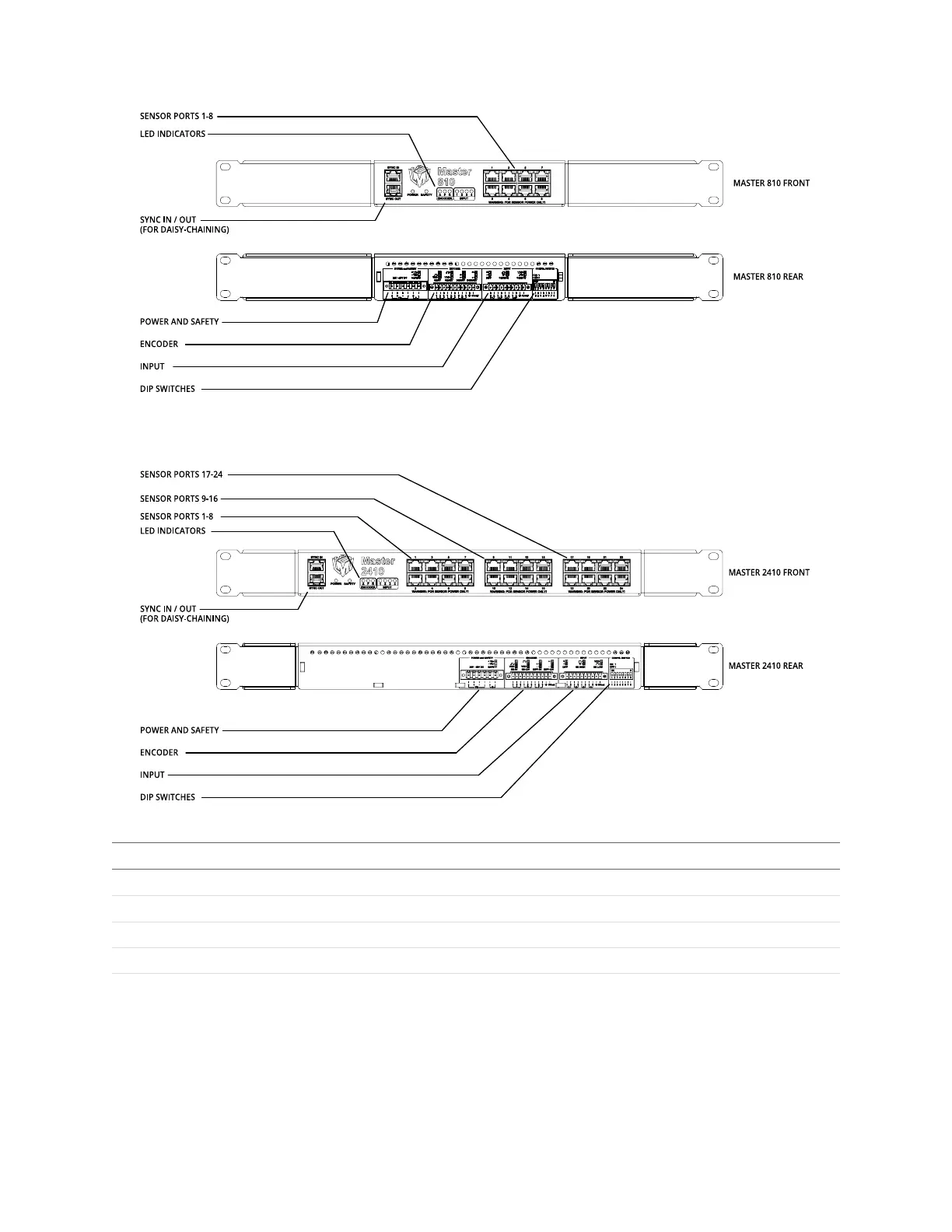

Master 810
Master 2410
Item Description
Sensor Ports Master connection for Gocator sensors (no specific order required).
Power and Safety Power and laser safety connection.
Encoder Accepts encoder signal.
Input Accepts digital input.
DIPSwitches Configures the Master (for example, allowing the device to work with faster encoders).
For information on configuring Master 810 and 2410 using the DIPswitches, see
Configuring Master 810 on page 36.
For pinout details, see Master 810/2410 on page 631.
