Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 284
appear.
The algorithm can separate out background
information that appears inside the opening. It
can also detect a slot that only partially appears
in the data.

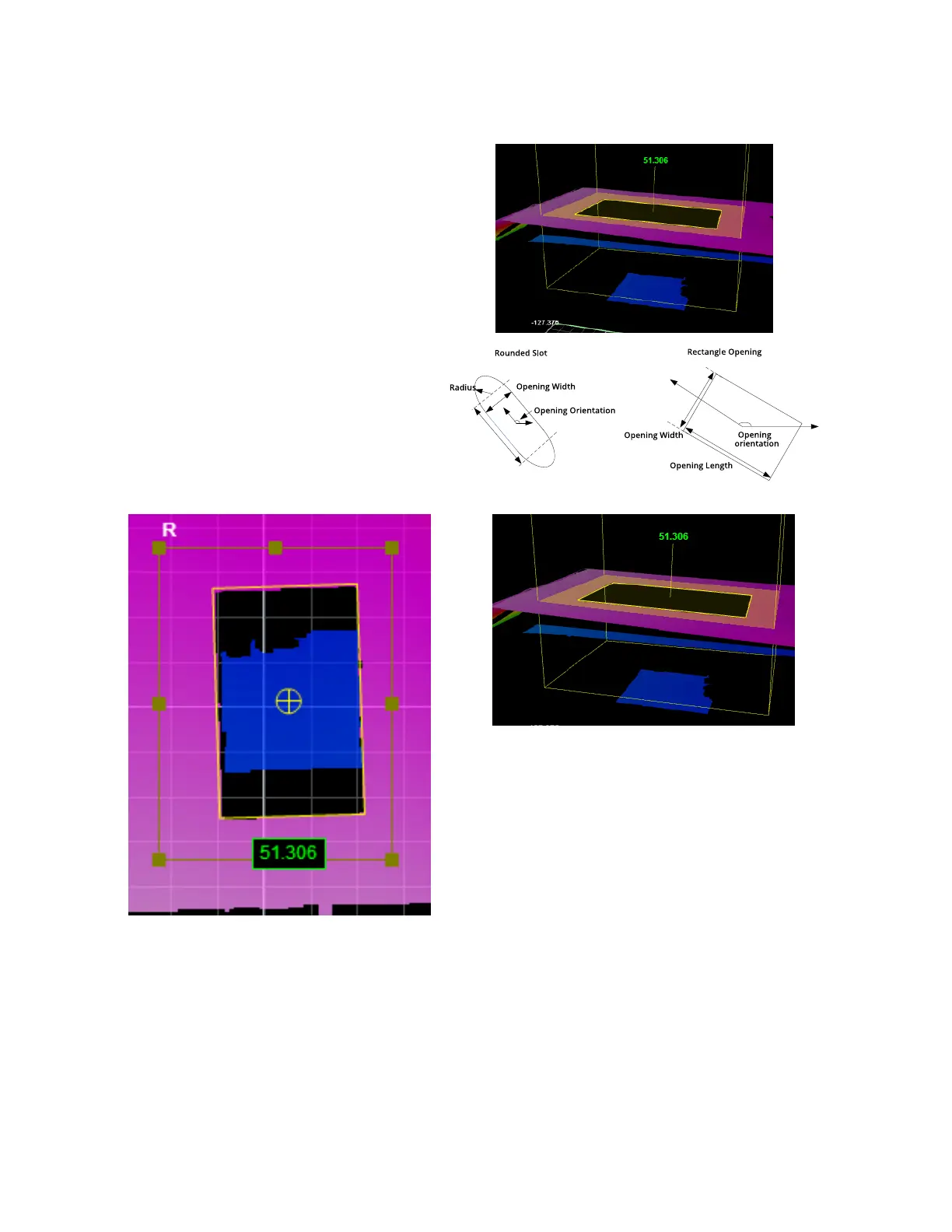

The shape of the opening is defined by its type
and its nominal width, length, and radius.
The orientation defines the rotation around the
normal of the alignment plane.
2DView
3DView
