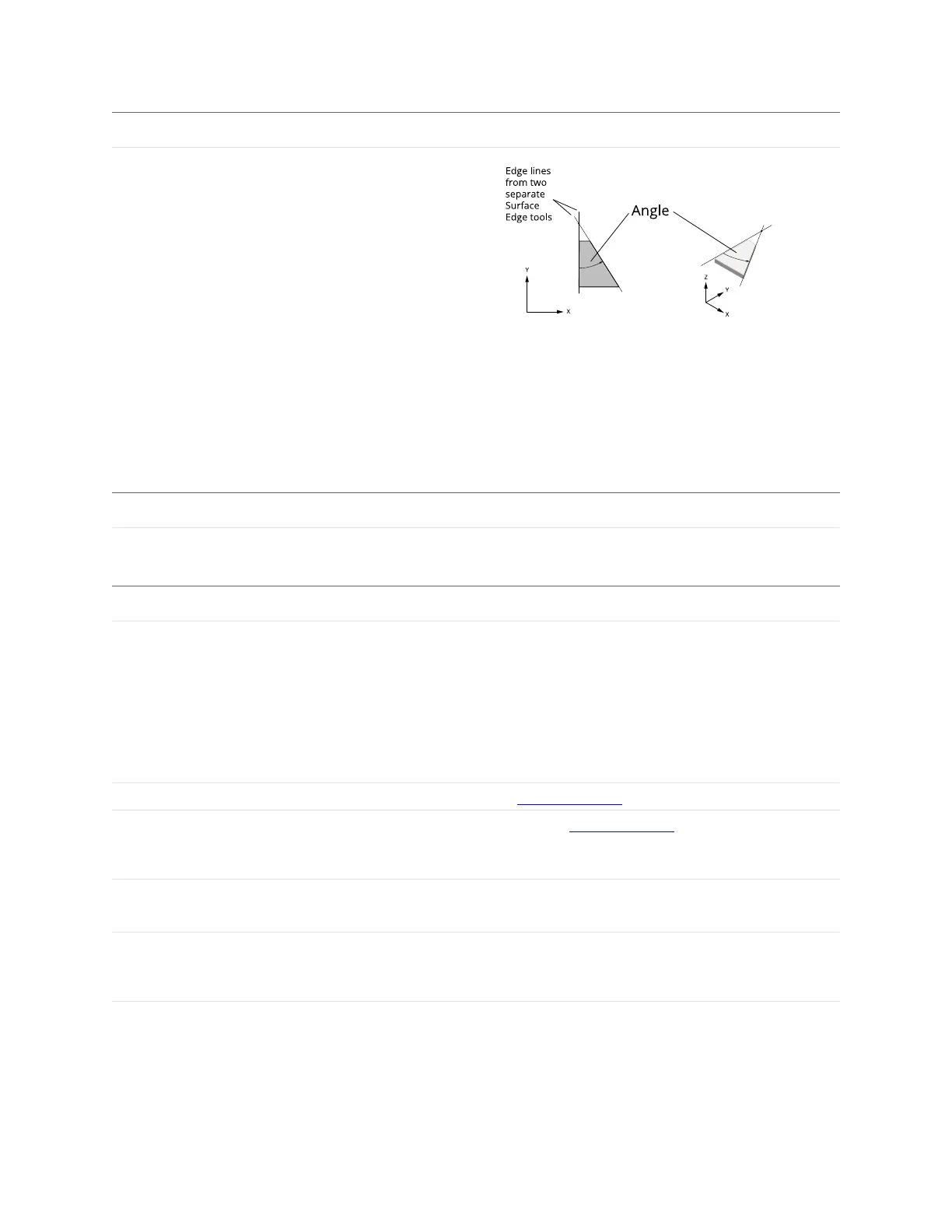

Measurement Illustration
Angle
Line-Line: The angle between the lines, as measured from
the line selected in Reference Feature to the line selected
in Line. Line-line angles can range over 360 degrees,
expressed either as an angle from -180 to 180 or as an angle
from 0 to 360 degrees.
Line-Plane:The angle between the line and the
perpendicular projection of the line onto the plane, as
measured from the plane geometric feature selected in
Reference Feature to the line selected in Line. Line-plane
angles are expressed as an angle from 90 to -90 degrees,
which can be expressed as an absolute value.
In both cases, use the Angle Range setting to determine
how angles are expressed.
Type Description
Intersect Point The intersect point of the two edge lines.
Features
Parameter Description
Stream The data that the tool will apply measurements to.
In Surface mode, this setting is only displayed when a
section is defined on the surface data.
If you switch from one type of data to another (for example,
from section profile data to surface data), currently set
input features will become invalid, and you will need to
choose features of the correct data type.
Line A line geometric feature generated by another tool.
Reference Feature
A line or plane geometric feature generated by another tool.
For the Angle measurement, the angle is measured from the
reference feature.
Angle Range
(Angle measurement only)
Determines the angle range.
Filters The filters that are applied to measurement values before
they are output. For more information, see Filters on page
192.
Decision The Max and Min settings define the range that determines
whether the measurement tool sends a pass or fail decision
to the output. For more information, see Decisions on page
191.
