Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 321

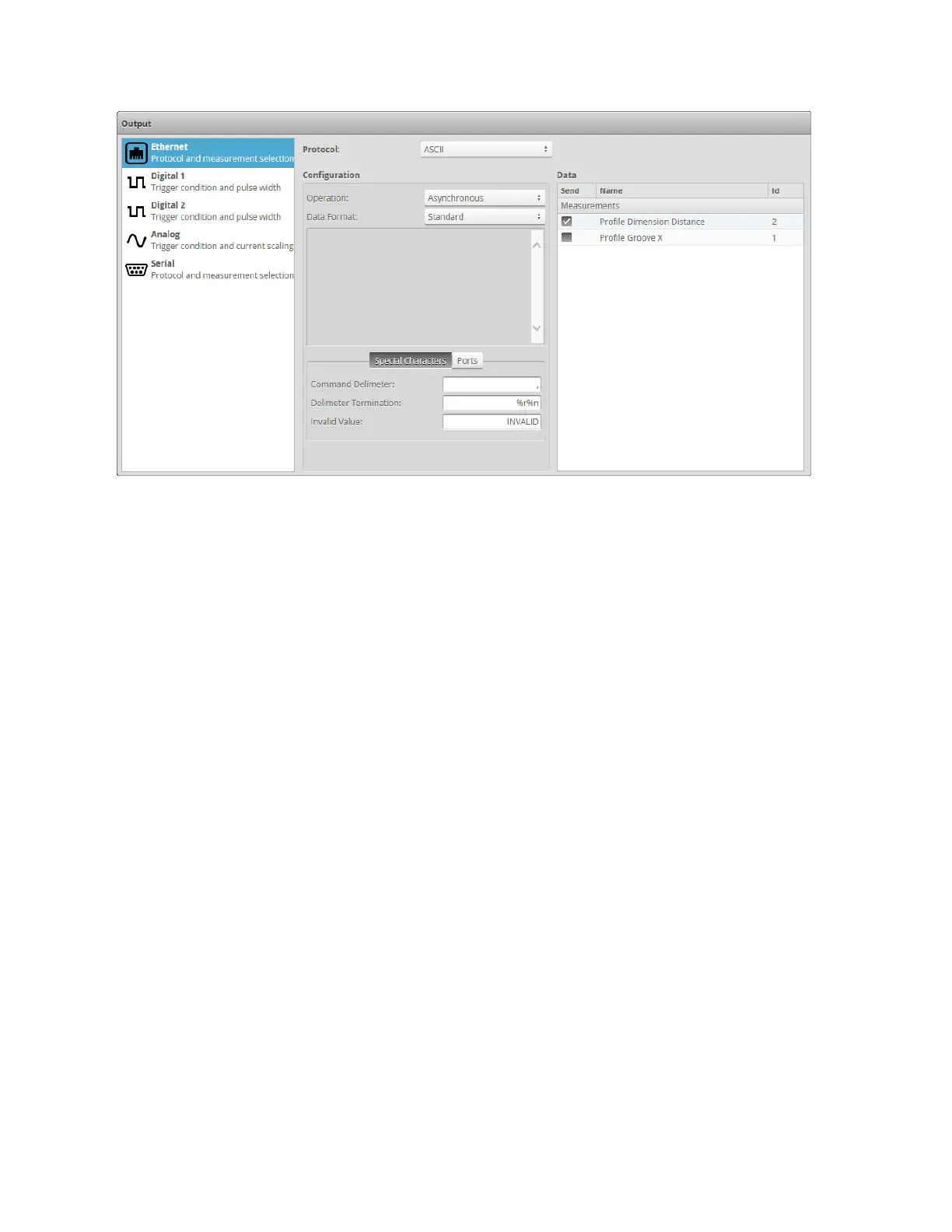

To receive commands and send results using ASCII messages:
1. Go to the Output page.
2. Click on Ethernet in the Output panel.
3. Select ASCII as the protocol in the Protocol drop-down.
4. Set the operation mode in the Operation drop-down.
In asynchronous mode, the data results are transmitted when they are available. In polling mode, users
send commands on the data channel to request the latest result. See Polling Operation Commands
(Ethernet Only) on page 522 for an explanation of the operation modes.
5. Select the data format from the Data Format drop-down.
Standard: The default result format of the ASCII protocol. Select the measurement to send by placing a
check in the corresponding checkbox. See Standard Result Format on page 530 for an explanation of
the standard result mode.
Standard with Stamp: Select the measurement to send by placing a check in the corresponding
checkbox. See Standard Result Format on page 530 for an explanation of the standard result mode.
Custom: Enables the custom format editor. Use the replacement patterns listed in Replacement
Patterns to create a custom format in the editor.
6. Set the special characters in the Special Characters tab.
Set the command delimiter, delimiter termination, and invalid value characters. Special characters are
used in commands and standard-format data results.
7. Set the TCP ports in the Ports tab.
Select the TCP ports for the control, data, and health channels. If the port numbers of two channels are
the same, the messages for both channels are transmitted on the same port.
