LORAD AFFINITY Series - C-Arm Frame Components

P/N 9-500-0255 6-29
Service Manual
Chapter 6: Maintenance—Remove and Replace Procedures
C-Arm Components—Remove and Replace
Use the following legend and Figure
6-18 as a guide for parts
identification on the Image receptor
Support Device (refer to Figure 6-
18).
Legend for Figure 6-18
1. AEC Detector Assembly
2. AEC Position Detector Board
3. Accessory Detect Board
4. AEC Position Compression Display
Microprocessor Board
3.1 C-Arm Frame Components
This section details the removal and replacement procedures for the components on the C-
arm Frame. The alignment, adjustment and/or calibration procedures are provided as
required.
3.1.1 Patient Face Shield Installation and Removal
The Face Shield
(Figure 6-19)
prevents the
patient’s head and
face from entering
the x-ray field
during the
examination. The
Face Shield mounts
to the tubehead and
surrounds the x-ray
tube port. To install
the Face Shield
follow these steps:
1. Position the
Face Shield so
that its open
side faces the
C-arm and the
smaller end
faces the tubehead.
2. Slide the open end of the face shield into the slots on the tubehead mount.
3. Push the Face shield completely on the mount.

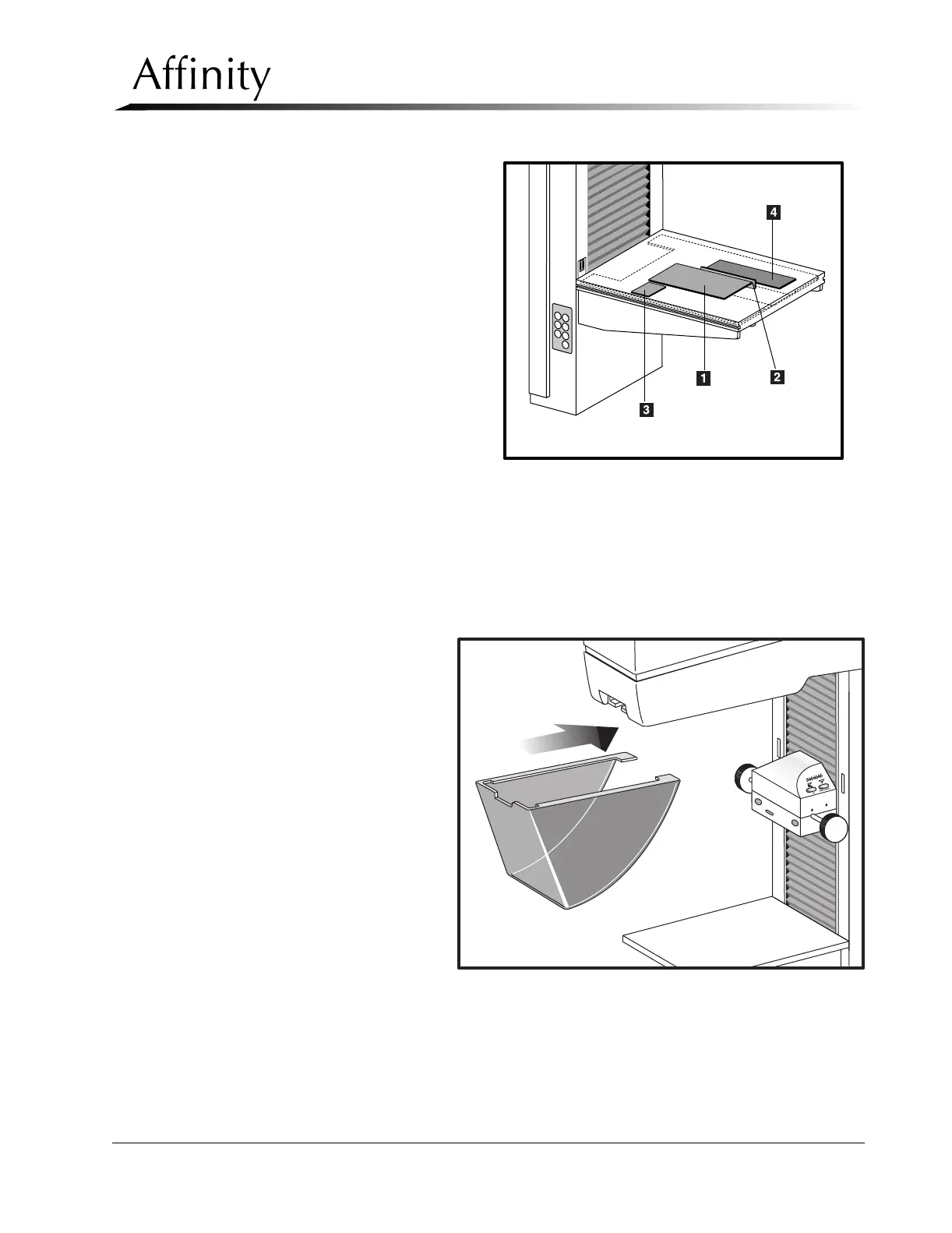

Figure 6-18: IRSD Components
Figure 6-19: Patient Face Shield
