Fuses
5.0 Fuses
Figure B-1 shows the location of the fuses that are on the Affinity Series Gantry circuit boards. One additional fuse
is located on the Relay Protection Board (part of the Input Power Assembly Chassis). Refer to Table B-20 for rating
and part number information on the fuses.

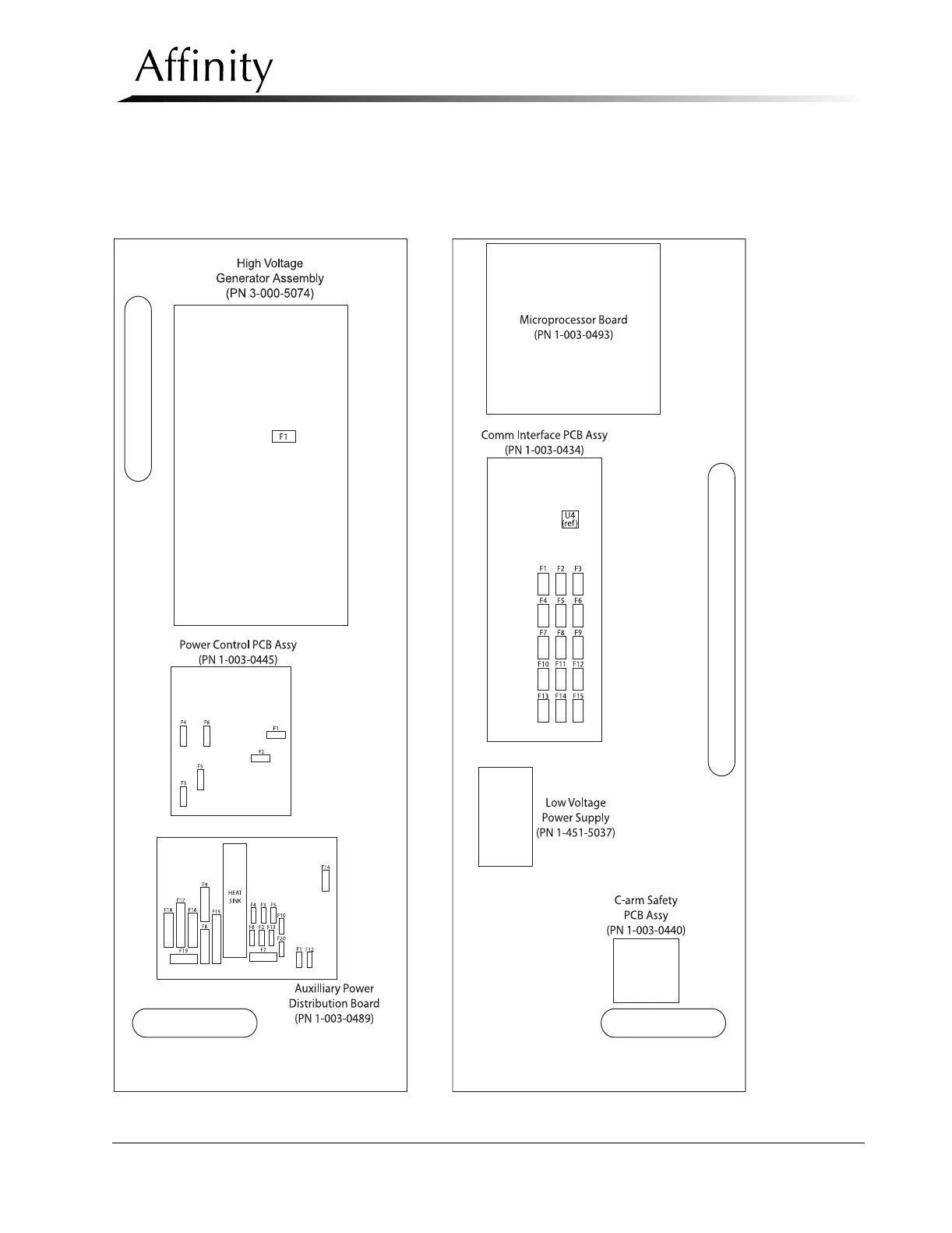

Figure B-1: Fuse Location—Gantry
