LORAD AFFINITY Series - Figure 6-33 Compression Clutch & Clutch Brake Assembly-Removal

P/N 9-500-0255 6-49
Service Manual
Chapter 6: Maintenance—Remove and Replace Procedures
C-Arm Components—Remove and Replace

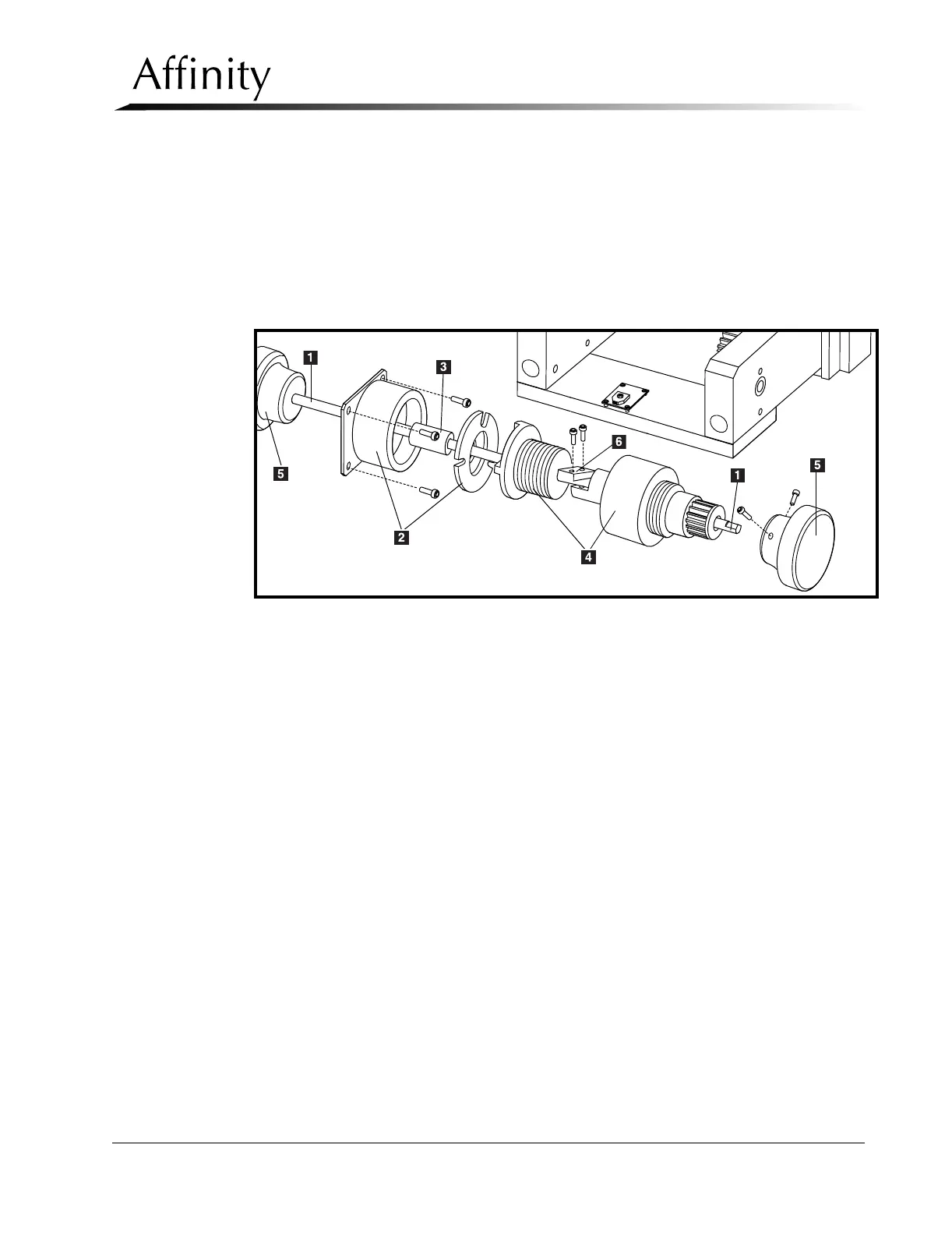

Legend for Figure 6-33
1. Clutch Shaft
2. Clutch Brake Magnet Assembly
3. Brass Spacer
4. Slip Clutch
5. Compression Knob
6. Locking Bar
Figure 6-33: Compression Clutch & Clutch Brake Assembly—Removal
