Service Manual
Chapter 2: System Installation
Unpacking Instructions
2.0 Unpacking Instructions
The following sections detail receiving and unpacking instructions, and inspections required
prior to installing the Affinity Series Mammography Unit.
2.1 Receiving Instructions
The Affinity Series Mammography Unit is shipped in containers that hold the following:
• the Gantry
• the Accessories
• the Radiation Shield
Upon receipt, perform the following before opening the containers:
• Inspect each container for damage.
• Note any damage on the shipping manifest.
• Notify L
ORAD of any external shipping damage that may have occurred.
2.2 Un-Crating the Unit
The Affinity Gantry is crated and shipped in a prone position (see Figure 2-2).
Be sure to have the necessary machinery and personnel available to move heavy medical
equipment safely.

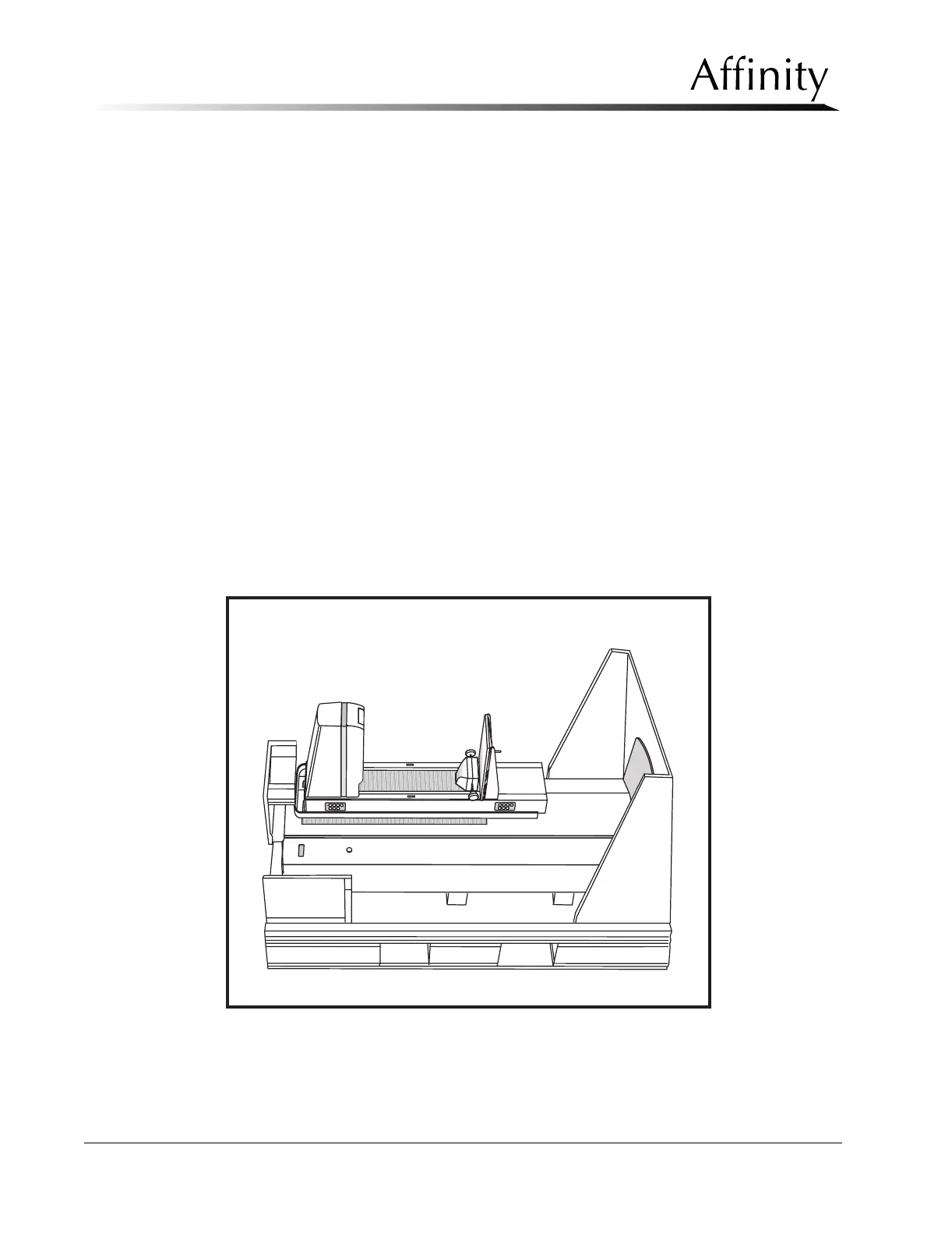

Figure 2-2: Un-Crating the Gantry
Un-crate the unit as follows:
1. Cut the retaining straps that secure the container top to the shock-mounted wooden pal-
let. Lift the container top off the unit.
