1-6 P/N 9-500-0255
Service Manual
Chapter 1: General Information
Unit Description

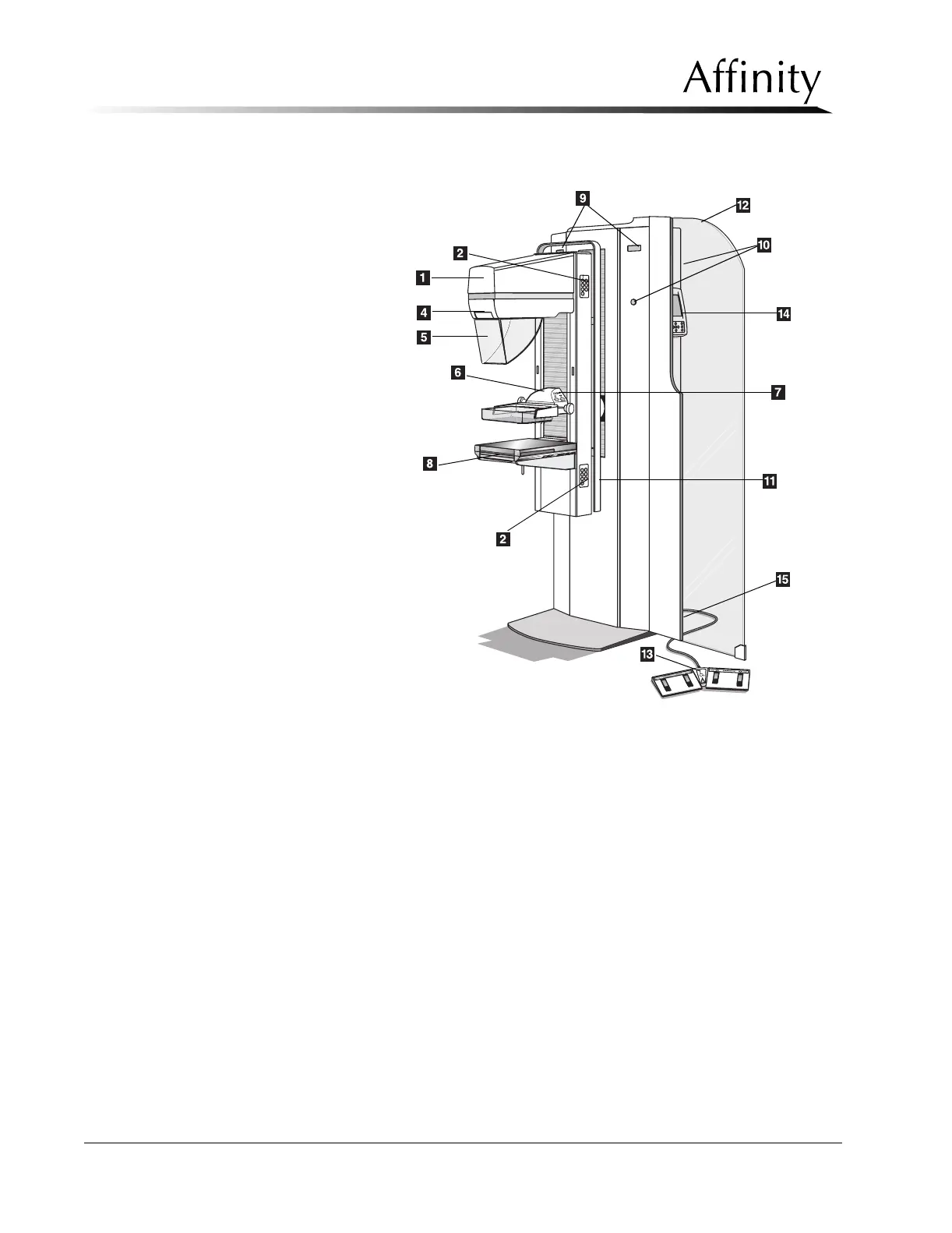

Legend for Figure 1-2
1. Tubehead
2. 7-Button Keypad (total of four,
two on each side)
3. 3-Button Keypad (not shown,
located on Top of Tubehead)
4. Aperture Slot
5. Face Shield
6. Compression Device
7. Compression Thickness/Force
Displays
8. Image Receptor Support Device
9. C-Arm Angle Display (total of
two, one on each side)
10. Emergency OFF Switch (total of
three, two on front of Gantry, and
one on rear)
11. Patient Handle
12. Radiation Shield
13. Footswitch
14. Control Panel
15. X-ray Footswitch (not shown,
mounted on Gantry base plate
behind Radiation Shield)
Figure 1-2: Affinity Gantry and C-Arm
