LORAD AFFINITY Series - Post Power-Up Checks

P/N 9-500-0255 3-3
Service Manual
Chapter 3: Functional Checks/Setting Defaults
System Power Up
2.3 Post Power-Up Checks
After power is applied, perform the following checks to determine if the electro-mechanical
subsystems are functioning. Correct all discrepancies before releasing the unit to the user.

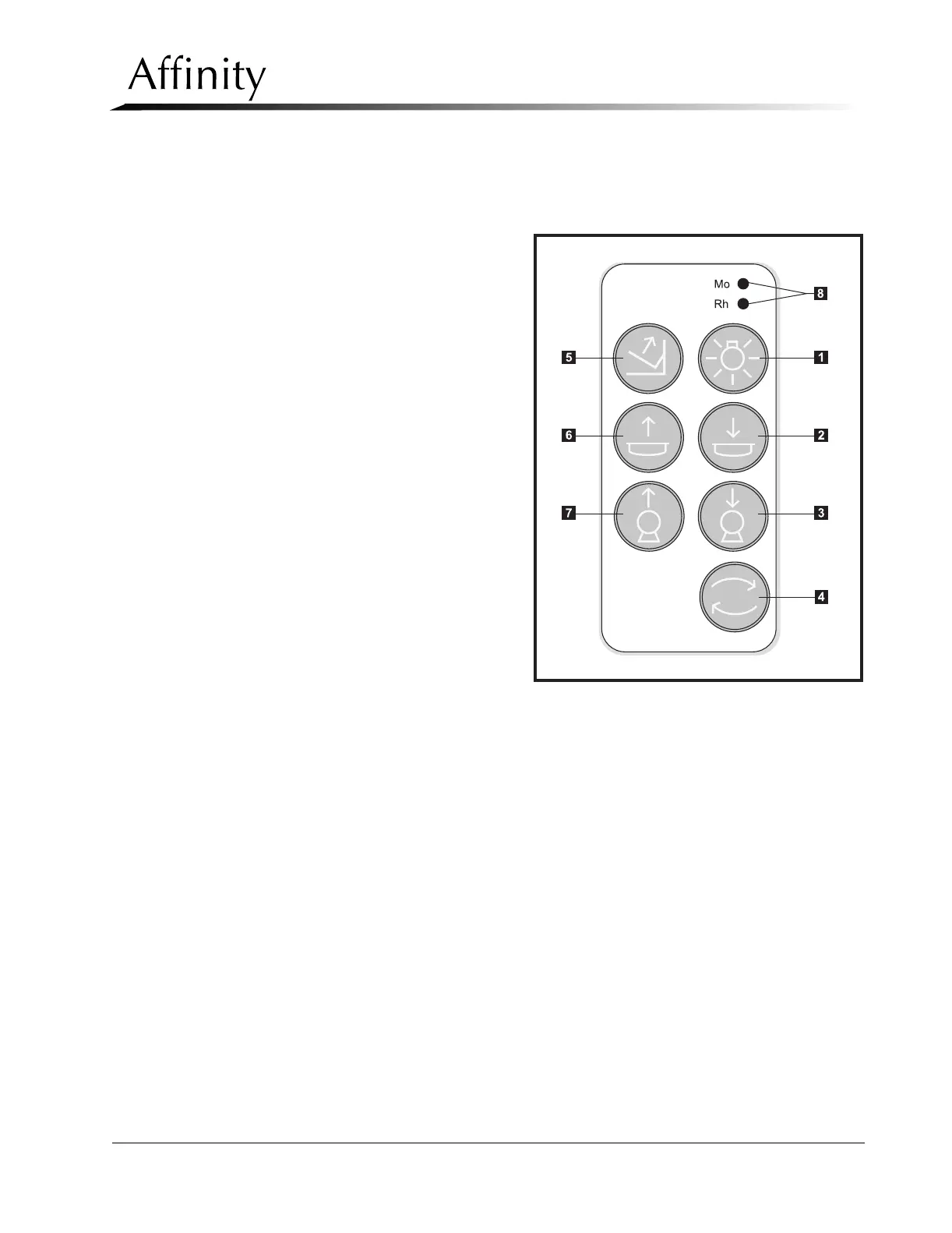

Legend for Figure 3-2
1. Light Field Lamp
2. Compression Down Switch
3. C-Arm Down Switch
4. C-Arm Rotation Release Switch
5. Compression Release Switch
6. Compression Up Switch
7. C-Arm Up Switch
8. Filter Type LED Indicators (Mo or Rh)
Figure 3-2: The C-arm Controls
