2-54
Issue 9 October 1998
363-206-204
Equipment and Rear Access Cable Installation
Note
:
Two brackets required per shelf to hold the
PANDUIT
*cable channel for the
fibers in place.

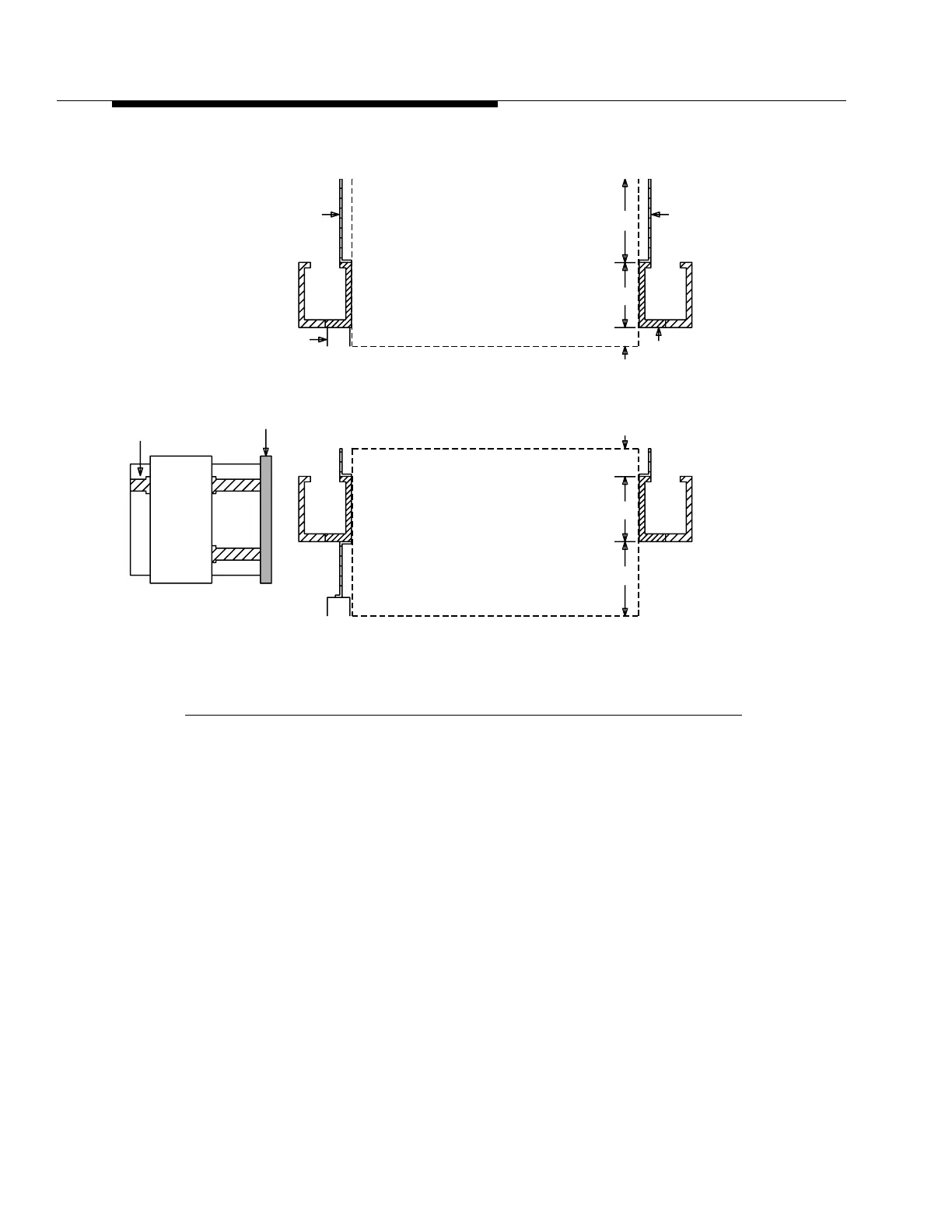

Figure 2-5. DDM-2000 OC-3 Shelf Mounting (Top View)
* Registered Trademark of Panduit Corporation.
Frame
Bay
Frame
Bay
Adjacent
Bracket
Rear Access
ED-8C501 Frame
Front Of Shelf
Front Of Shelf
Rear Access
ED-8C500 Frame
Left Side View
Frame
Bay
Bracket
Frame
Bay
Adjacent
Bracket
PANDUIT
5.0"
5.0"
6.0"
1.0"
PANDUIT
2.0"
5.0"
