Lucent Technologies DDM-2000 OC-3 - Figure 3-4. DDM-2000 Shelf Mounting (Top View)

3-38
Issue 9 October 1998
363-206-204
Equipment and Front Access Cable Installation
Note
:
There are two brackets required per shelf to hold the
PANDUIT
* cable
channel in place.

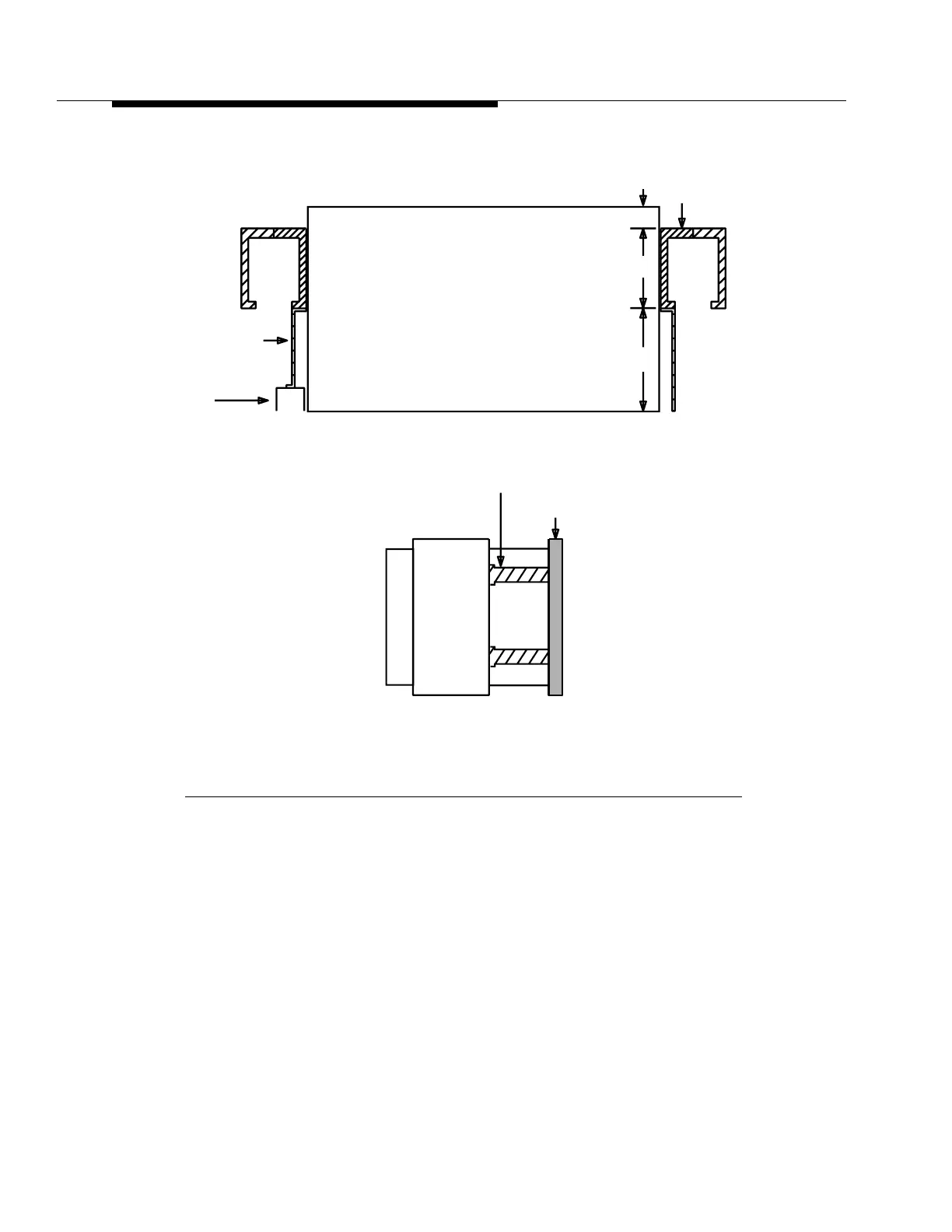

Figure 3-4. DDM-2000 Shelf Mounting (Top View)
* Registered Trademark of Panduit Corporation
Left Side View
Frame
Bay
Bracket
Frame
Bay
Front of Shelf
Front Access
ED-8C500 Frame
Bracket
Frame
Bay
Adjacent
PANDUIT
1.0"
5.0"
PANDUIT
6.0"
