Lucent Technologies DDM-2000 OC-3 - Figure 4-16. 21 G (OLIU) Option Switches

4-48
Issue 9 October 1998
363-206-204
Powering, Verification, and Circuit Pack Installation

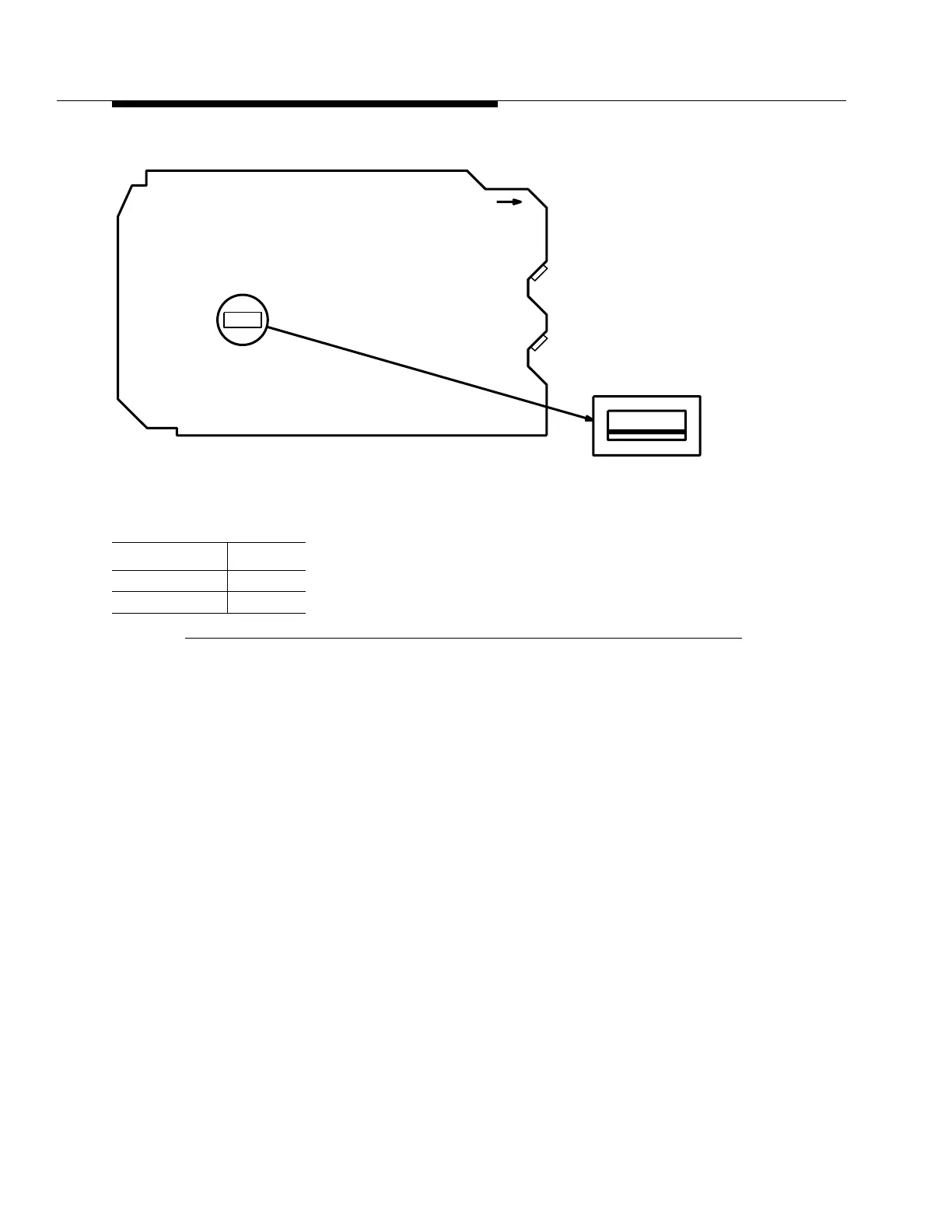

Figure 4-16. 21G (OLIU) Option Switches
Switch 1 Settings
Output Power Selection
-3.5 dBm HIGH
-8.5 dBm LOW
Connector
Edge
IN
Component Side
Latch
I or III
II
S1
S1
POWER
LOW
POWER
HIGH
OUT
