Lucent Technologies DDM-2000 OC-3 - Figure 4-15. HDSL DIP Switch Settings

363-206-204
Powering, Verification, and Circuit Pack Installation
Issue 9 October 1998
4-47

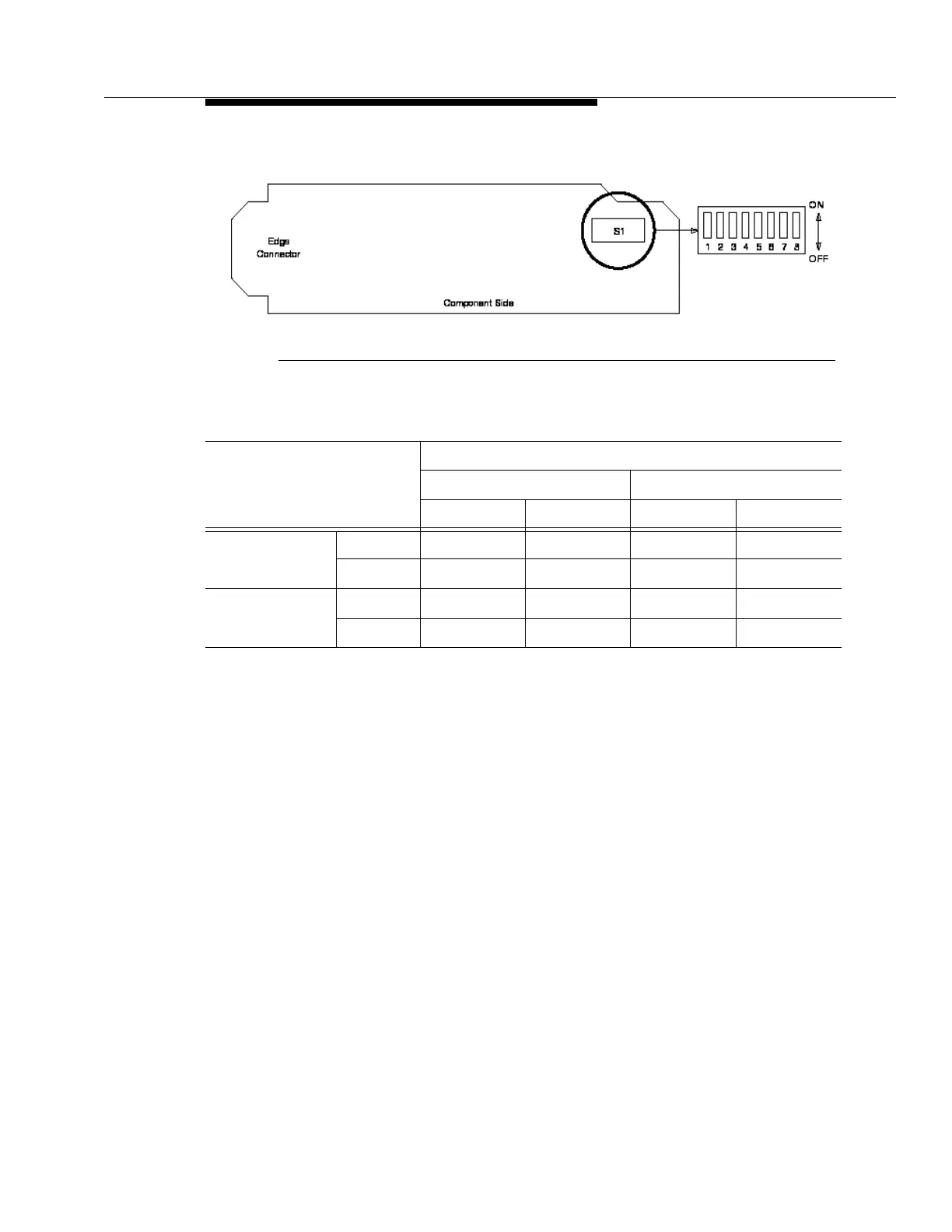

Figure 4-15. HDSL DIP Switch Settings
HDSL Options
DIP Switch Settings
HDSL Port #1 HDSL Port #2
S1-1 S1-2 S1-3 S1-4
HDSL
Master — OFF — OFF
START-UP
Slave — ON — ON
HDSL
Local OFF — OFF —
MANAGEMENT
Through ON — ON —
