Lucent Technologies DDM-2000 OC-3 Installation Manual

3-40
Issue 9 October 1998
363-206-204
Equipment and Front Access Cable Installation

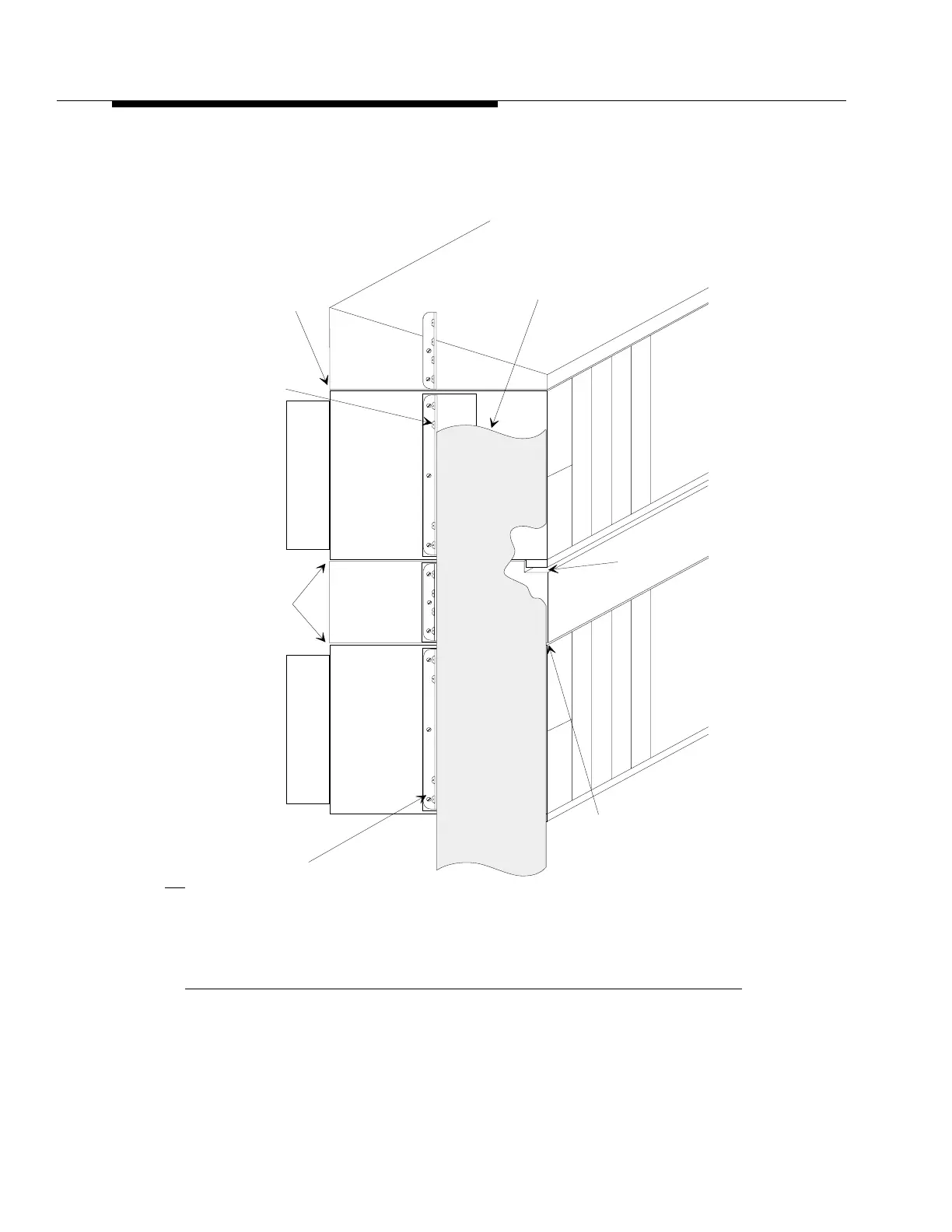

Figure 3-6. Side Mounting Bracket Positions
THE FRONT SURFACES OF
THE OC-3 SHELF, FAN SHELF
AND BAFFLE SHOULD BE
MOUNTED FLUSH WITH
RESPECT TO EACH OTHER
PART OF
BAY UPRIGHT
BAFFLE
DDM-2000
OC-3 SHELF
DDM-2000
OC-3 SHELF
FAN
SHELF
IF SECOND OC-3 SHELF DOES
NOT EXIST, BAFFLE SHOULD
BE FLUSH WITH FAN SHELF
NO AIR GAPS
SHOULD EXIST BETWEEN
FAN SHELF AND OC-3 SHELF
TO ENSURE PROPER COOLING
THREAD CUTTING SCREWS
(PROVIDED WITH THE SHELF)
MUST BE USED ON THE
UNPAINTED PORTION OF
THE BRACKET TO ENSURE
PROPER GROUNDING OF
SHELF TO BAY FRAME
THE PORTION OF THE BRACKET
MOUNTED TO THE SHELF OR
BAFFLE MUST REMAIN VISIBLE
(N
OT SANDWICHED BETWEEN
THE SHELF AND BAY FRAME)
REMOVE FILLER
PLATE FROM
FAN SHELF
