Lucent Technologies DDM-2000 OC-3 - Figure 4-19. Universal Buildout Types (Sheet 1 of 2)

363-206-204
Powering, Verification, and Circuit Pack Installation
Issue 9 October 1998
4-51

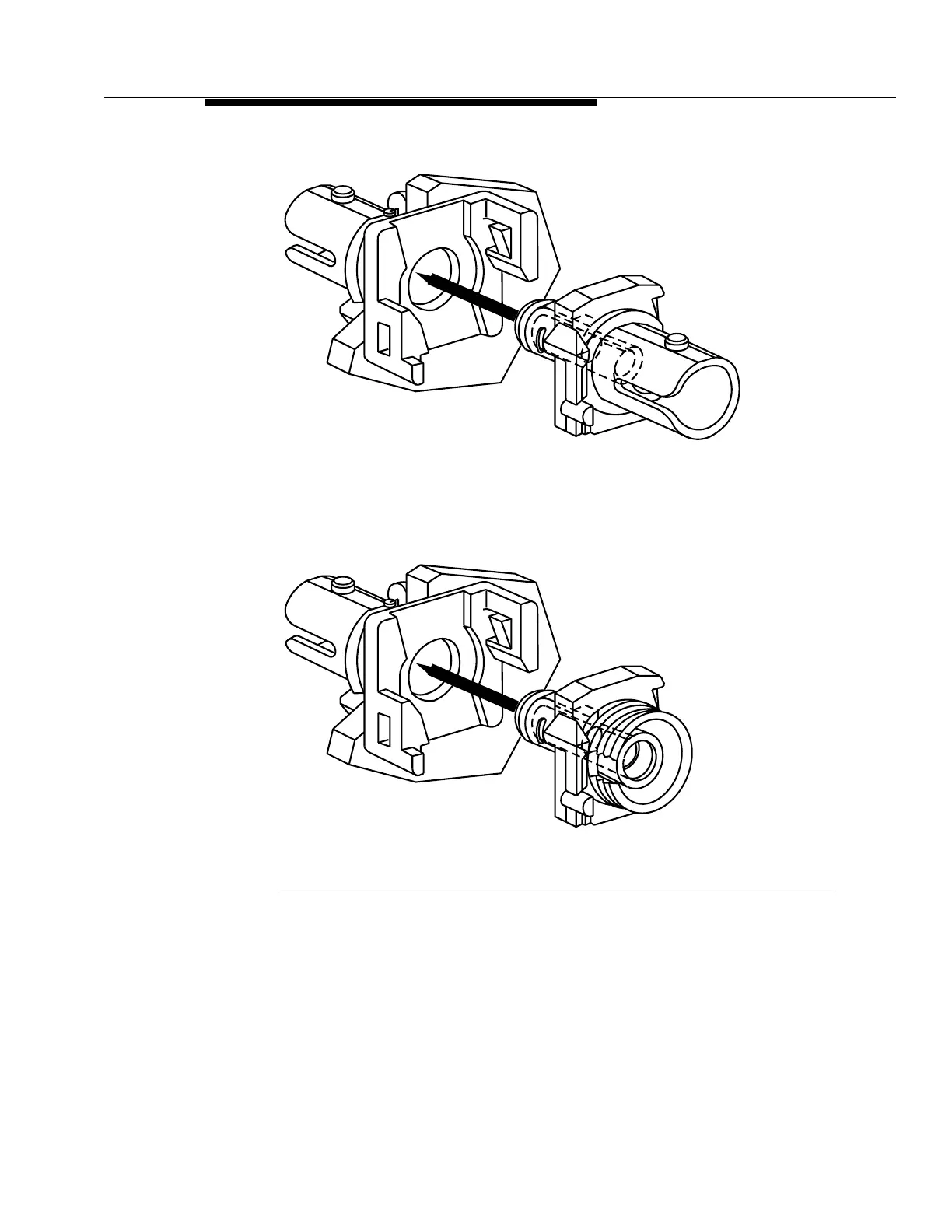

Figure 4-19 (A).
ST
®
-Type Universal Buildout
Figure 4-19 (B). FC/PC-Type Universal Buildout
Figure 4-19. Universal Buildout Types (Sheet 1 of 2)
Buildout Block
Lightguide Buildout
Buildout Block
Lightguide Buildout
