363-206-204
Equipment and Rear Access Cable Installation
Issue 9 October 1998
2-59
Notes:
1. Refer to Table 2-2 for specific DS3/-EC-1 cable assemblies.
2. Separate DS3/EC-1 cables are required for each shelf.

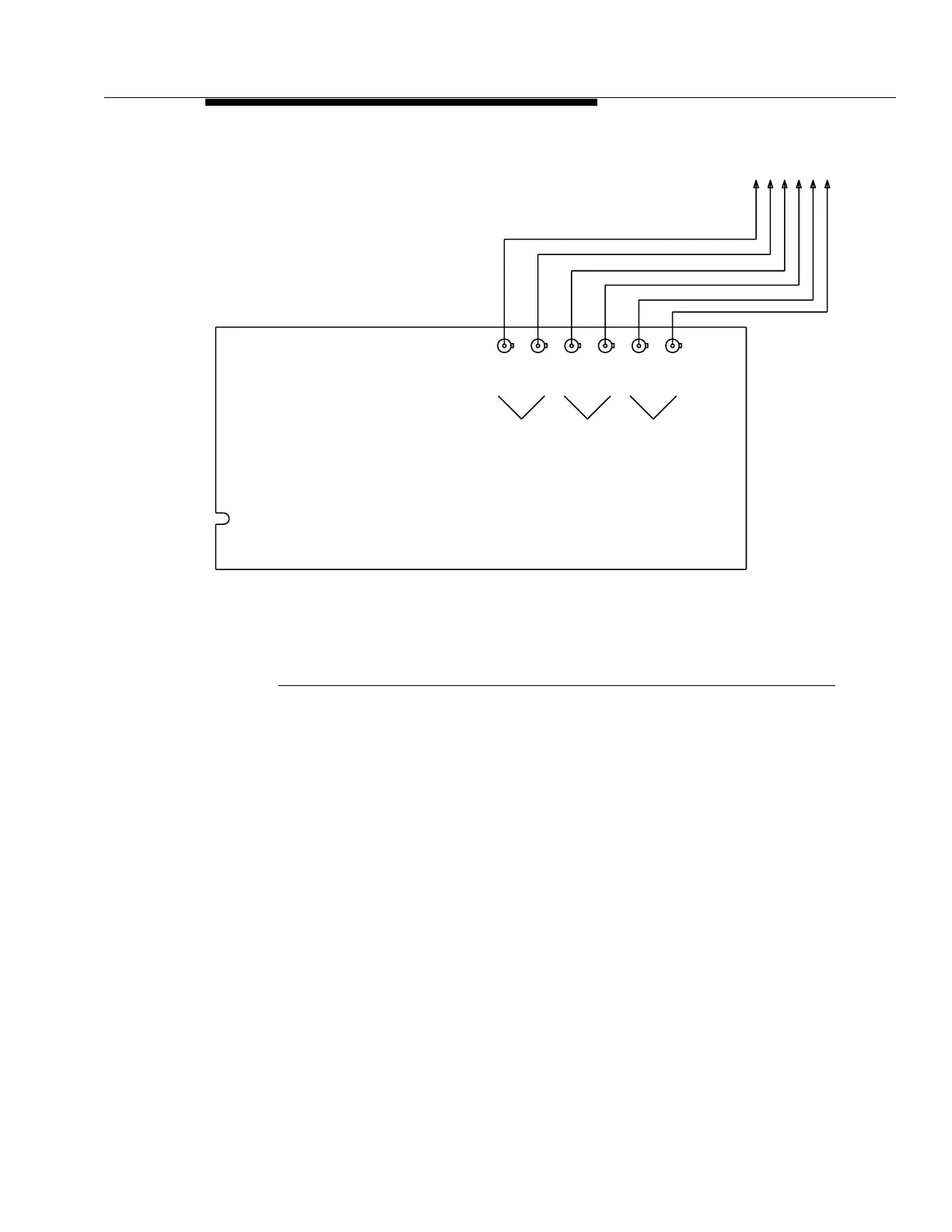

Figure 2-9. Rear Access DS3/EC-1 Cabling
Function Group
B
Function Group
C
OUTOUTOUT INININ
J38J39
Function Group
A
J40J41J42J43
