Lucent Technologies DDM-2000 OC-3 Installation Manual

363-206-204
Powering, Verification, and Circuit Pack Installation
Issue 9 October 1998
4-23
Table 4-3. SYSCTL Option Setting Guidelines
Examples in a CO:
-Set CO/RT switch for CO
-Set site address for site 7
-Set front and rear access data rate for 9600
-Set power minor for office minor
-Set the first shelf in the TBOS link to primary
(if applicable, set to secondary)

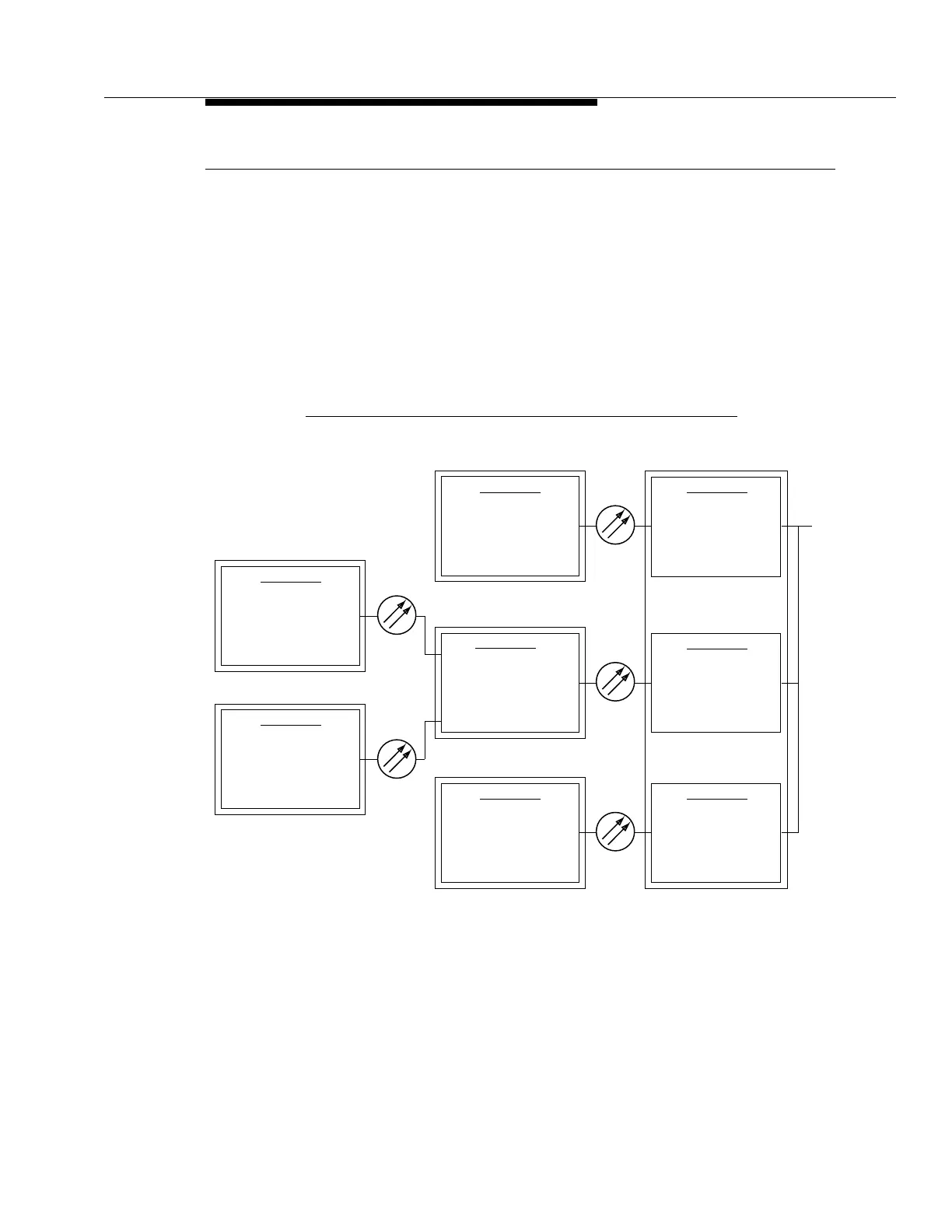

Example of TBOS-Related Provisioning for DDM-2000 OC-3 Only Applications
DDM-2000 OC-3
RT Site
CO/RT select: RT
TBOS termination: not last
TBOS display number: 5
TBOS backup function: no TBOS link
Remote TBOS enable: enabled
Far end com: enabled
DDM-2000 OC-3
RT Site
CO/RT select: RT
TBOS termination: not last
TBOS display number: 6
TBOS backup function: no TBOS link
Remote TBOS enable: enabled
Far end com: enabled
DDM-2000 OC-3
RT Site
CO/RT select: RT
TBOS termination: not last
TBOS display number: 2
TBOS backup function: no TBOS link
Remote TBOS enable: enabled
Far end com: enabled
DDM-2000 OC-3
CO/RT select: RT
TBOS termination: not last
TBOS display number: 4
TBOS backup function: no TBOS link
Remote TBOS enable: enabled
Far end com: enabled
DDM-2000 OC-3
RT Site
CO/RT select: RT
TBOS termination: not last
TBOS display number: 8
TBOS backup function: no TBOS link
Remote TBOS enable: enabled
Far end com: enabled
HUB Remote
Terminal (RT) Site
DDM-2000 OC-3
DDM-2000 OC-3
DDM-2000 OC-3
OC-3
OC-3
TBOS
intrabay
multiple
cable
Central Office (CO) Bay
CO/RT select: CO
TBOS termination: not last
TBOS display number: 1
TBOS backup function: primary
Remote TBOS enable: enabled
Far end com: enabled
CO/RT select: CO
TBOS termination: not last
TBOS display number: 3
TBOS backup function: secondary
Remote TBOS enable: enabled
Far end com: enabled
CO/RT select: CO
TBOS termination: last
TBOS display number: 7
TBOS backup function: normal
Remote TBOS enable: enabled
Far end com: enabled
OC-3
Examples in an RT:
-Set CO/RT switch for RT
-Set site address for a site other than 7
-Set front and rear access data rate for 9600
-Set power minor for office minor
-Set TBOS Display number, one number higher than the CO shelf number it is linked to
-Set TBOS backup number for no TBOS
OC-3
OC-3
TBOS
Link
