Lucent Technologies DDM-2000 OC-3 Installation Manual

4-36
Issue 9 October 1998
363-206-204
Powering, Verification, and Circuit Pack Installation
SYSCTL Switch 1 Note
:
1. For DDM-2000 OC-3 applications, switch 1 sections 1, 2 and 3 must be set to the OFF
position.

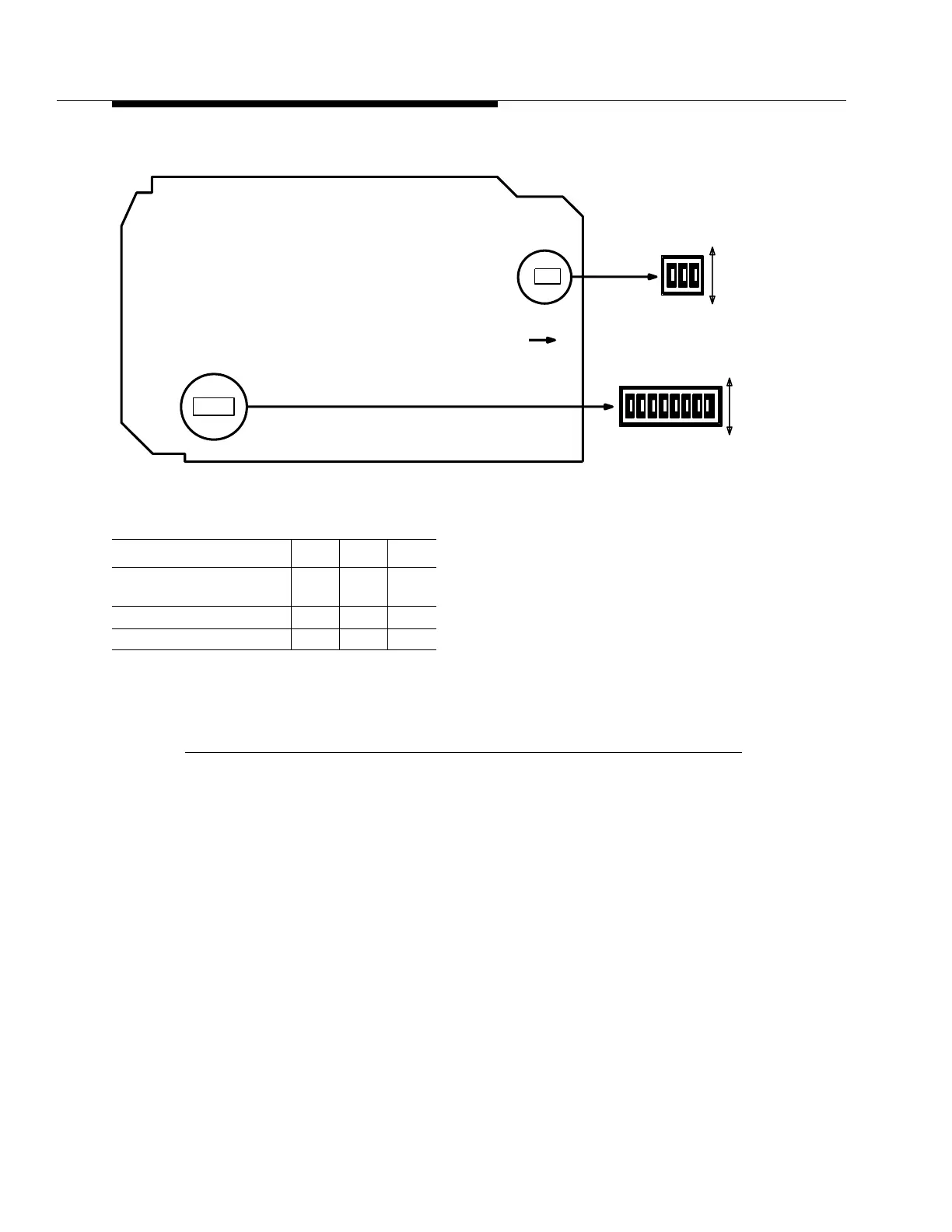

Figure 4-8. BBG8 (SYSCTL) Option Switches (Sheet 1 of 2)
Switch 1 Settings
Product Identification Sec 1 Sec 2 Sec 3
DDM-2000/SLC-2000/
DDM-2000 FiberReach
OFF OFF OFF
MegaStar-2000 R1 OFF OFF ON
MegaStar-2000 R2 OFF ON ON
Component Side
Connector
Edge
OFF
21
S1
S1
Latch
ON
S2
876543
S2
OFF
ON
21
3
