9-28
Issue 9 October 1998
363-206-204
Release 13 (TARP) Installation Tests

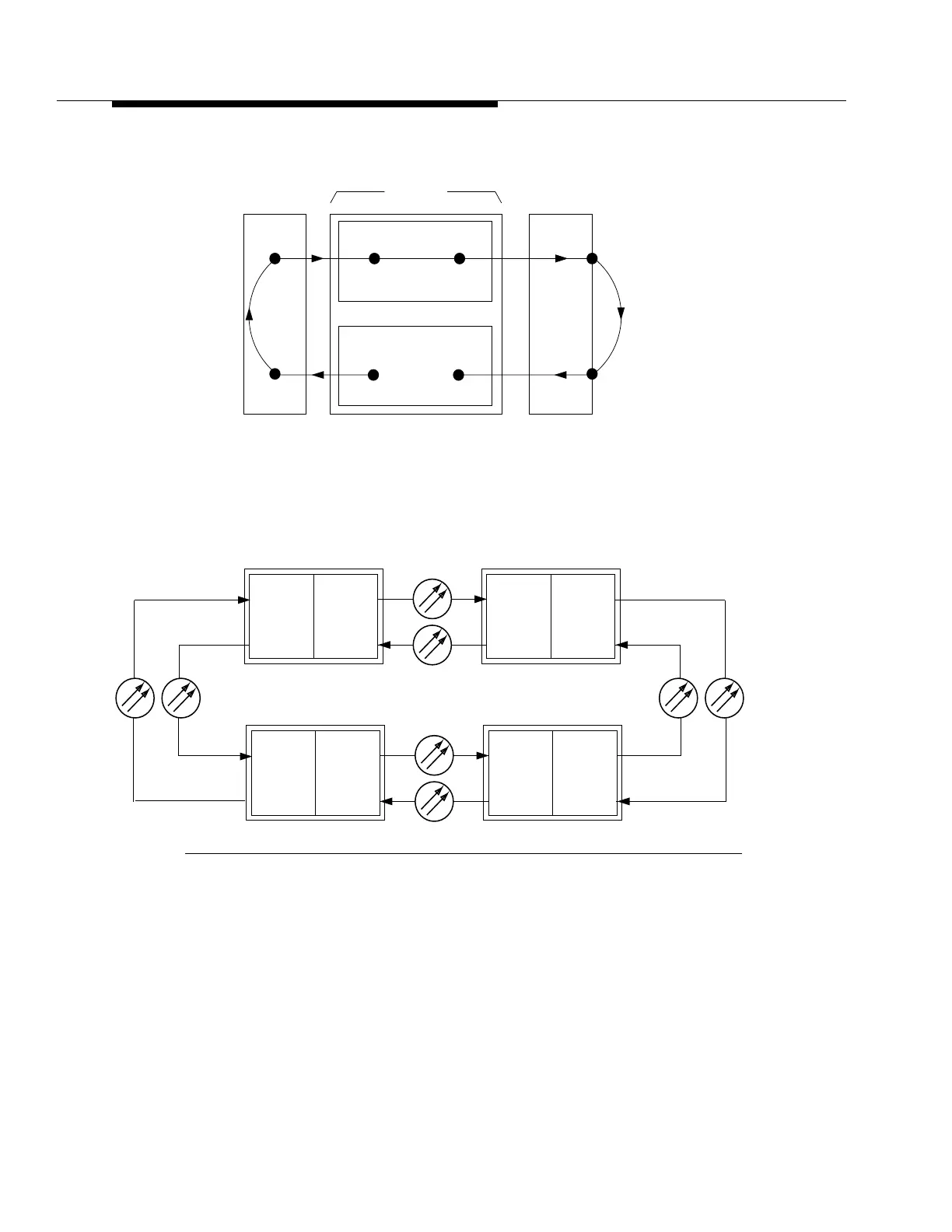

Figure 9-1. Installation Test Connections
MAIN 1
MAIN 2
IN
OUT
OUT
IN
MAIN 1
MAIN 2
IN
OUT
OUT
IN
Site1NE1
Site2NE1
Fiber Installation and System Test
Local Equipment and Cross-Connect Test
DSX OLIU
Multiplexing Direction
Monitor
Demultiplexing Direction
Near End
DSX
Loop
Internal
Test Signal
Fiber
Loopback
MAIN 2
MAIN 1
IN
OUT
OUT
IN
MAIN 2
MAIN 1
IN
OUT
OUT
IN
Site4NE1
Site3NE1
