363-206-204
Powering, Verification, and Circuit Pack Installation
Issue 9 October 1998
4-41
Note
:
Set the LBO setting based on the type of cable used and the cable length.

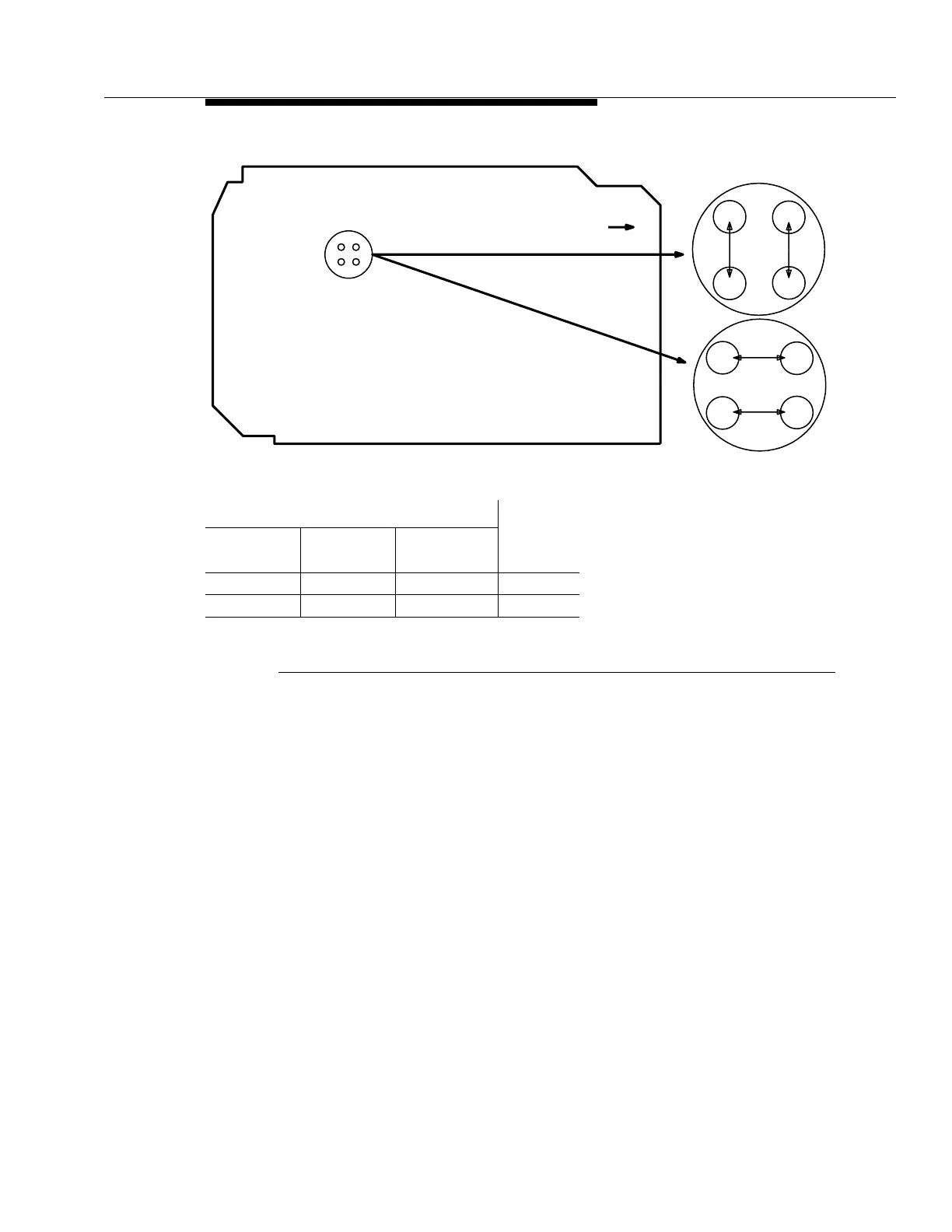

Figure 4-10. BBG4 and BBG19 (DS3) Option Switches
Cable Length (ft.)
Plug
Settings
(Note)
735A
1735006A
734A KS-19224, L2
0 to 125 0 to 125 0 to 75 LBO IN
>125 to 245 >225 to 450 >75 to 150 LBO OUT
LBO OUT
LBO IN
TP2
TP4
TP3
TP1
TP2
TP4
TP3
TP1
Component Side
Connector
Edge
Latch
