Lucent Technologies DDM-2000 OC-3 Installation Manual

363-206-204
Equipment and Rear Access Cable Installation
Issue 9 October 1998
2-57

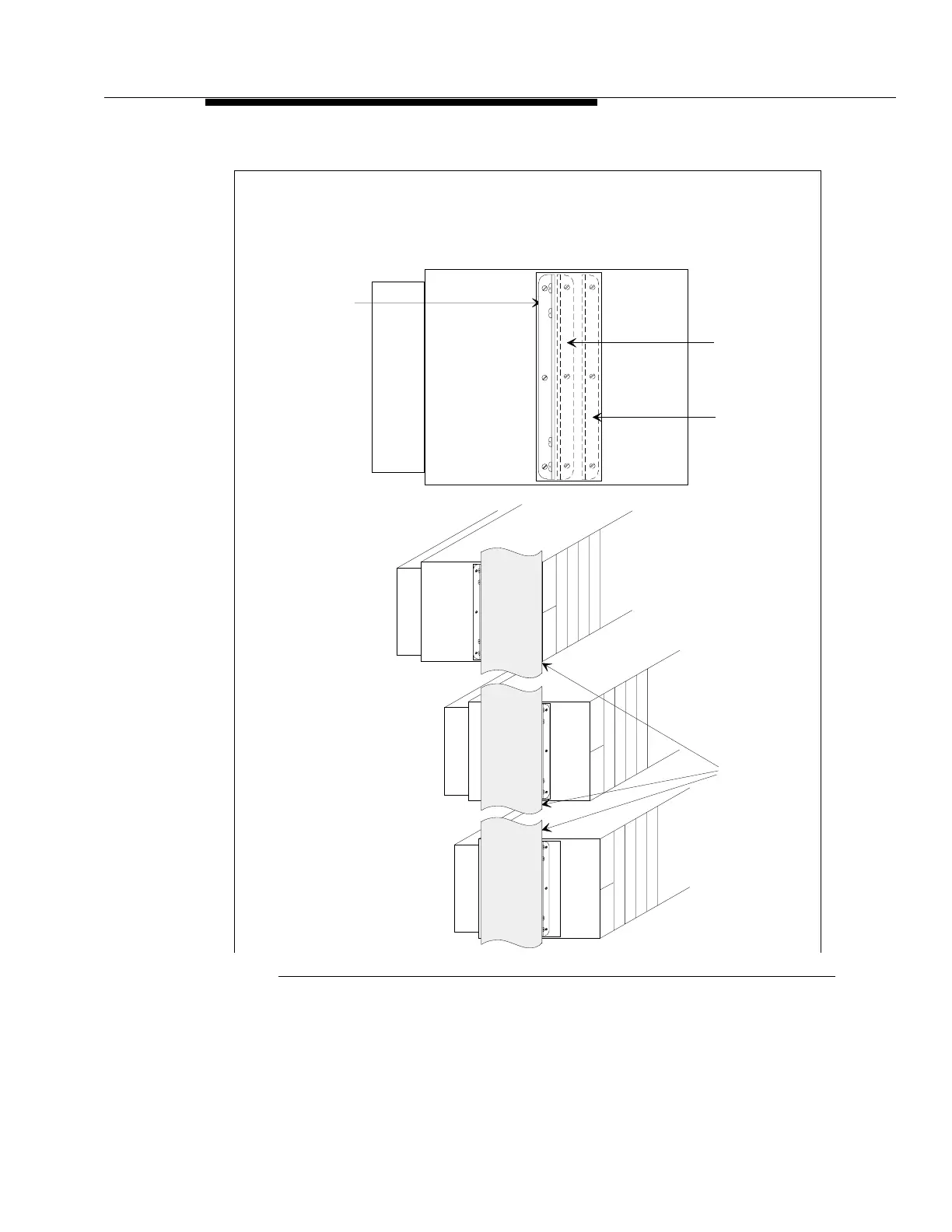

Figure 2 -7. Side Mounting Bracket Positions (Sheet 2 of 2)
THE SHELF BRACKET CAN BE INSTALLED IN ANY OF THREE DIFFERENT POSITIONS
ED-8C500
REAR MOUNT
CONFIGURATION
(AS SHIPPED FROM
FACTORY)
ED-8C501
FRONT MOUNT
CONFIGURATION
PART OF
BAY UPRIGHT
ED-8C500
FRONT MOUNT
CONFIGURATION
ED-8C500
REAR MOUNT
CONFIGURATION
(AS SHIPPED FROM
FACTORY)
ED-8C500
FRONT MOUNT
CONFIGURATION
ED-8C501
FRONT MOUNT
CONFIGURATION
