MLC650 SERVICE/MAINTENANCE MANUAL HYDRAULIC SYSTEM
2
2
Drum 5 Motor—VPC-MAX
TM
Boom Hoist Motor
Drum five motor (Figure 2-9) is a bidirectional variable-
displacement motor. Motor displacement is controlled by an
electronic motor controller. Electronic control of the drum five
motor is provided by the IOL30 control module.

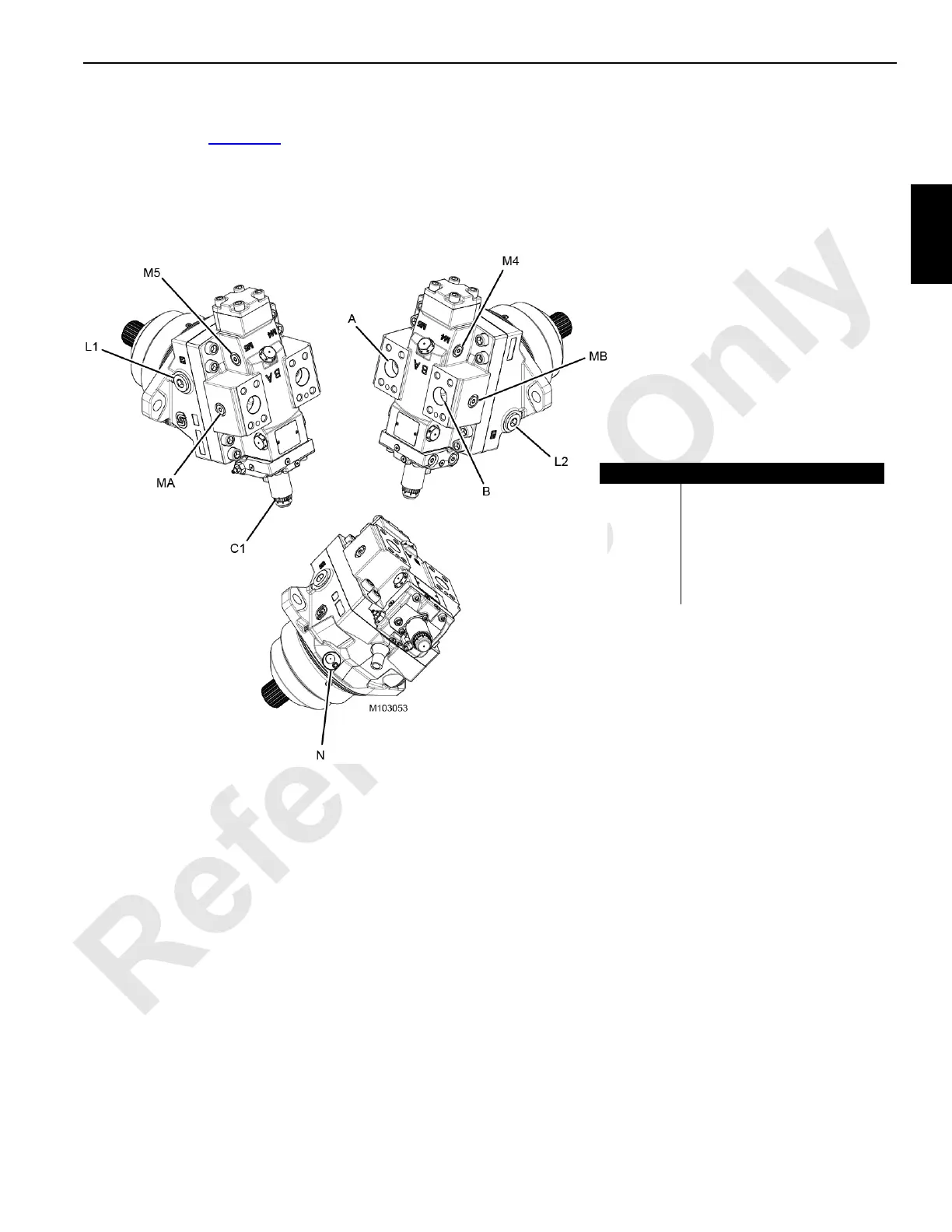

FIGURE 2-9
Item Description
A, B System Pressure Lines
C1 Solenoid
L1, L2 Drain Ports
MA, MB Gauge Ports—System Pressure
M4, M5 Gauge Ports—Servo Pressure
N Speed Sensor
