HYDRAULIC SYSTEM MLC650 SERVICE/MAINTENANCE MANUAL
2-36
Published 09-09-16, Control # 229-09
Cab Tilt Adjustment
To adjust the speed at which the cab tilts up and down,
proceed as follows.
See Figure 2-34
for the following procedure.
1. Loosen the set screws (4).
2. Turn the adjusting knobs (3) fully clockwise to close the
valves.
3. Open both valves slightly.
4. Test the cab tilt operation with the switch on the control
console in the cab.
5 Repeat step 2
through step 4 until the cab tilt starts and
stops smoothly in both directions.
6. Securely tighten the set screws.

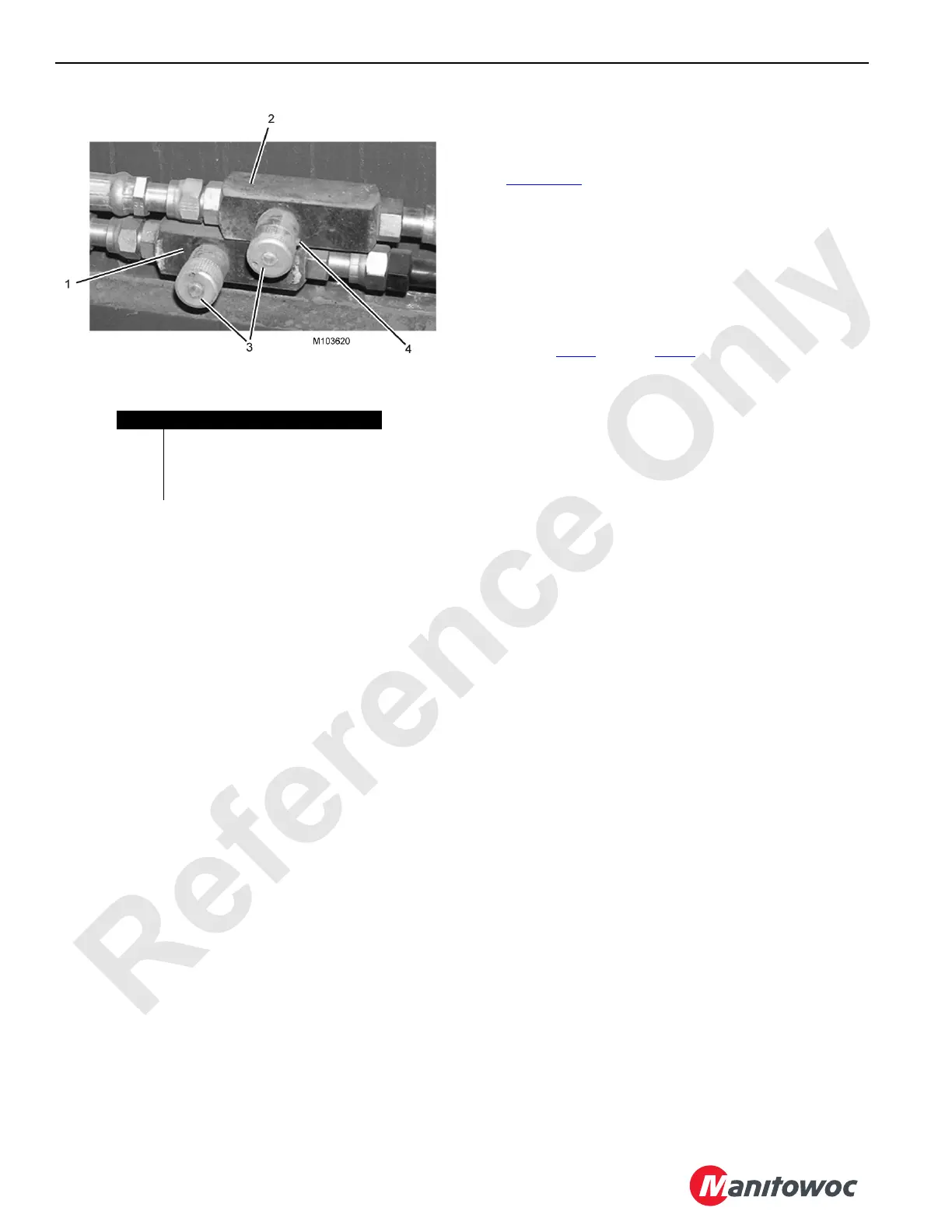

FIGURE 2-34
Near Cab On Left Side of Rotating Bed
Item Description
1 Tilt Down—Flow Control Valve
2 Tilt Up—Flow Control Valve
3 Adjusting Knob (qty 2)
4 Set Screw (qty 2)
