18.2 Integral Balancer Unit

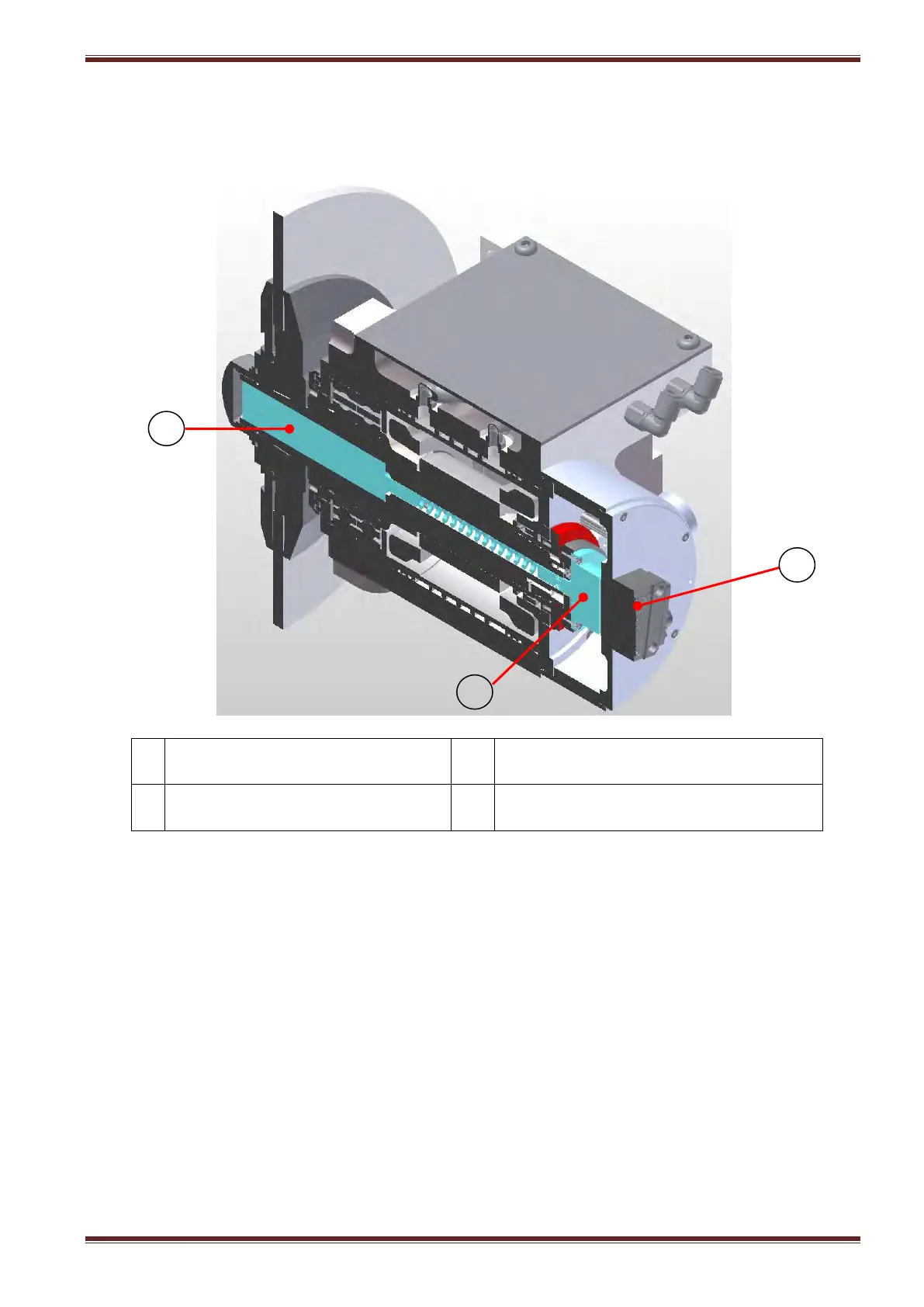

The integral balancer unit is mounted inside the bore of the grinding spindle shaft and forms part of
the motorised grinding spindle assembly.
1
Integral balancer unit (containing
motorised weights)
3
Non-contact sender unit
2
Receiver unit
There are two moving weights inside the integral balance unit which are electronically controlled to
compensate for any imbalance to the grinding wheel during running.
1
2
3
