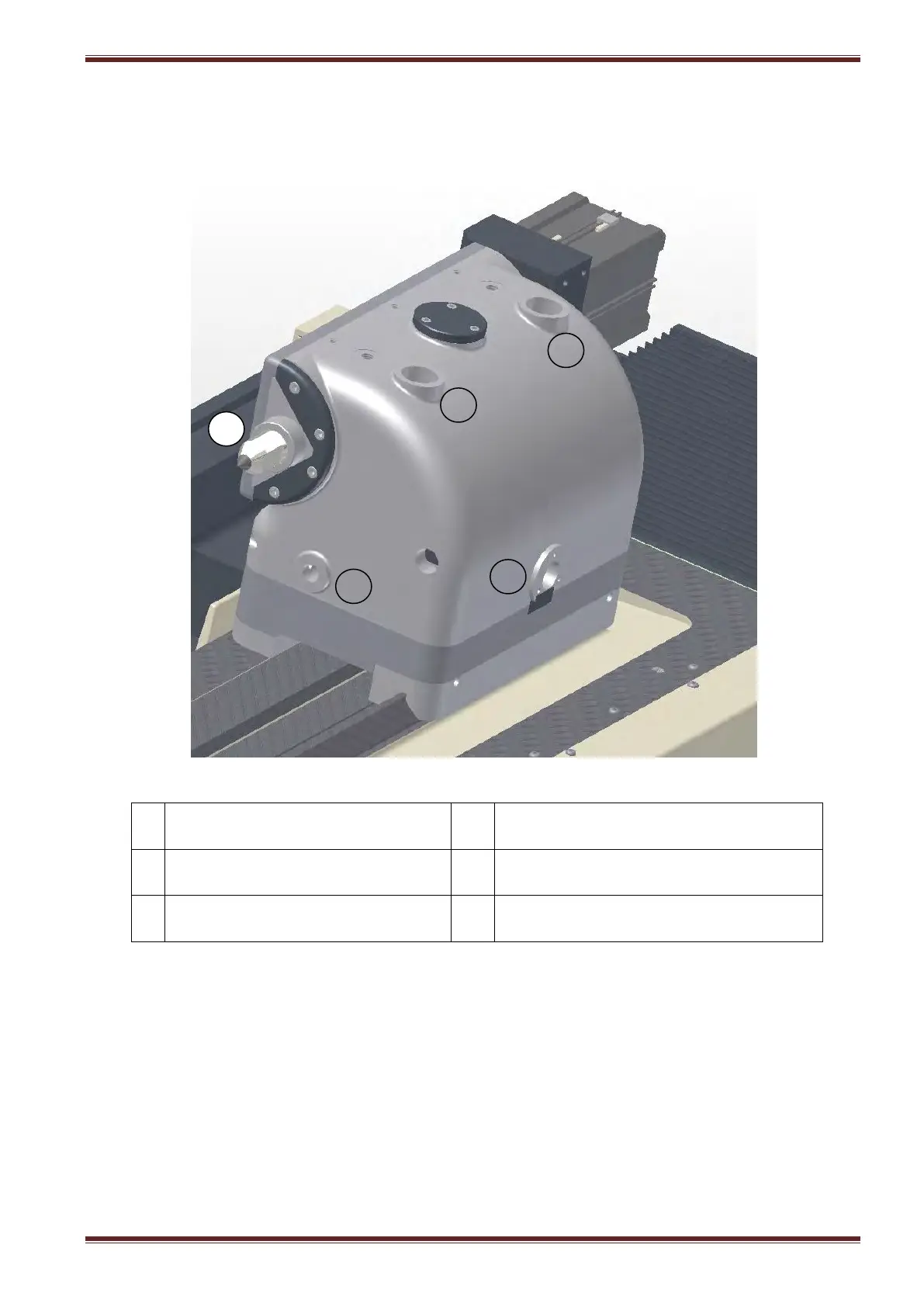

9.2 Pneumatic Tailstock (option)
The pneumatically operated tailstock option is similar in design to the manual version except that
tailstock barrel advance and retract control is achieved with a pneumatically driven piston.
1
Tailstock body-to-table securing
bolts
4
Taper adjust lock nut
2
Tailstock barrel centre
advance/retract lever
5
No. 4 MT centre
3
Taper adjust wheel
6
Pneumatic piston for tailstock barrel
centre advance/retract
This version of the tailstock is best suited to applications where the machine is intended to be used
within an automation environment along with other automation options selected with the machine
at the time of ordering.
