Matrix 0850 - Taper In; Taper out

0850/0850-T1 User Manual
Matrix Machine Tool (Coventry) Limited 110 / 231
Edition: 08/2013
19.3.3 Taper In/ Taper Out

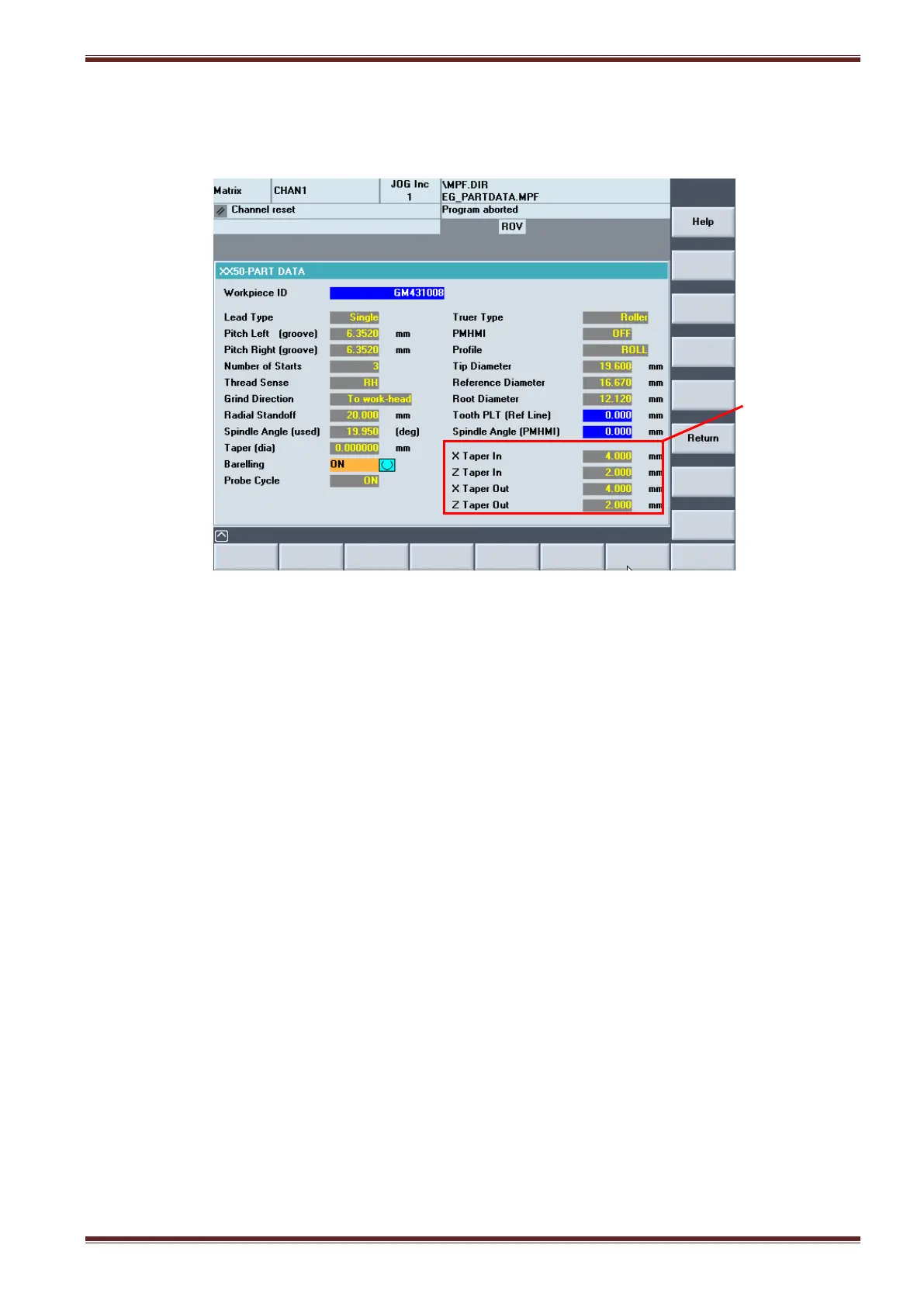

Select the [Barrel Data] vertical softkey in the Part Data screen if you want to define the point at
which the grinding wheel enters and exits the workpiece thread to be ground.
input fields
become visible
when the
BarrelData key
is selected
