9.4 Taper Adjust Procedure
The taper adjust procedure below is applicable to all tailstock versions.

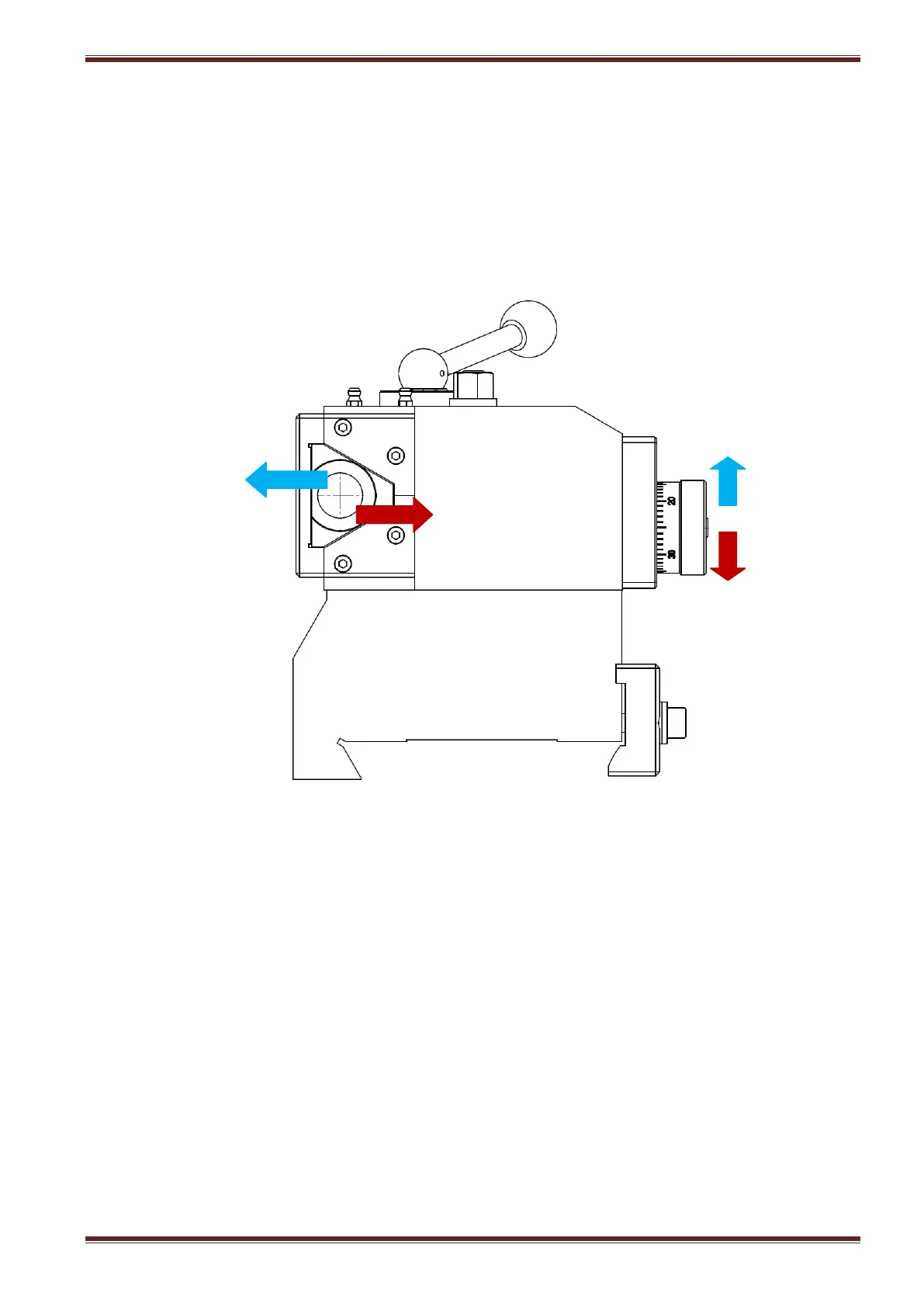

1. Slacken-off the taper adjust lock nut
2. Turn the taper adjust wheel as required to correct the misalignment of the workpiece
installed between the centres.
3. Tighten-up the lock nut when you have finished.
CW
CCW
