11 Automatic doors (option)

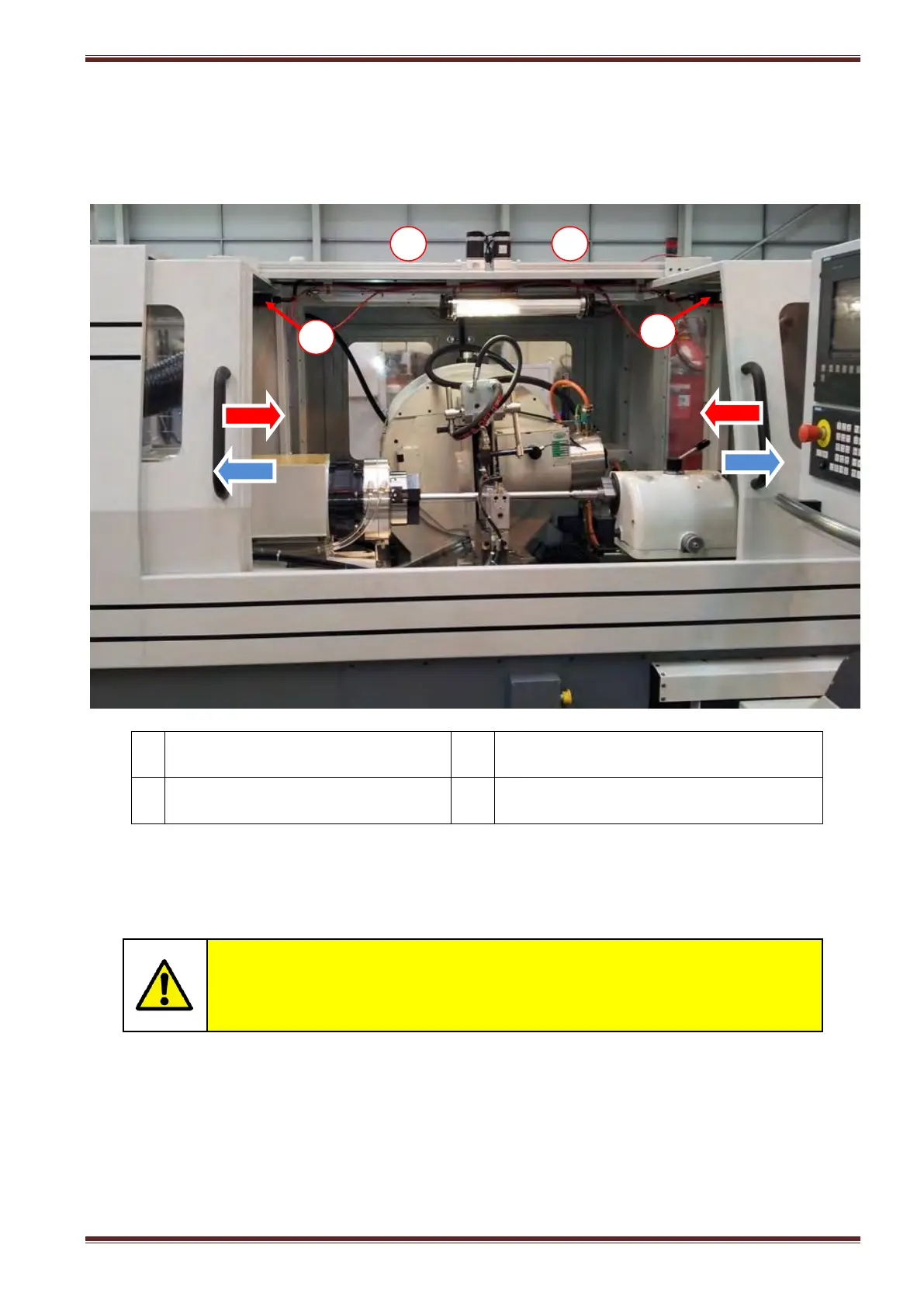

In this version of the 0850 machine enclosure the two front operator access doors feature
independently servo driven linear actuator mechanisms. The complete assembly is mounted
externally to the top of the enclosure thereby providing easy access for maintenance purposes.
1
LH door servo driven linear
actuator
3
LH door close safety interlock switch
2
RH door servo driven linear
actuator
4
RH door close safety interlock switch
Actuation of the front access door is triggered by pressing together the two-handed cycle start
buttons located to the sides of the control console when the machine is set to operate in full
automatic cycle mode.
Caution
Do not touch or put any obstacles in the way of the doors when they are
operating. Do not put your head, arm or any part of your body in the machine
when the doors are operating.
When the cycle is completed the front doors open automatically so that you can unload the
processed workpiece and load the next workpiece to the machine.
1
2
4
3
