22.7 Preparing the Spindle Chiller Unit
The free standing spindle chiller unit supplies and re-circulates chilled water to the main grinding
spindle and the dresser spindle to prevent the spindles from overheating during normal machine
operation.
The chiller unit is fitted with castors allowing it to be conveniently positioned to the rear side of the
machine.
Before the chiller unit can be operated the 35L tank must be filled with:
95% normal tap water (33.25L)
5% anti-corrosion concentrate (1.75L)
Filling the spindle chiller unit

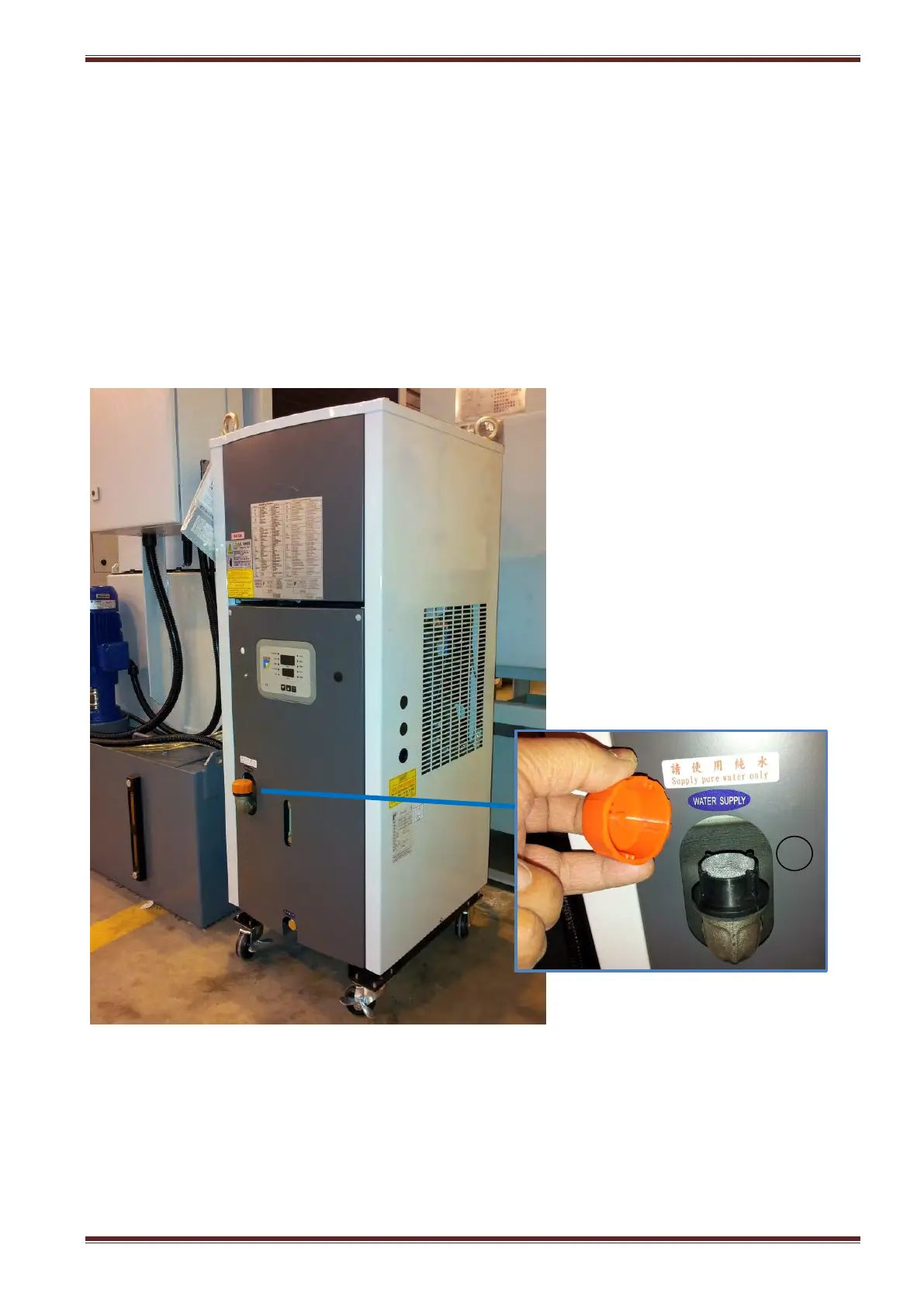

1. Remove the filling point cover (inset picture).
2. Using a suitable funnel first pour in 10L of normal tap water.
3. Now pour in 1.75L of anti-corrosion concentrate.
4. Finally top up with water until the sight glass is showing the tank full.
5. Replace the filling point cover.
