3 Machine Overview
The 0850 machine is a purpose built multi-axis CNC external thread grinder specifically designed for
the precision grinding of many types of workpiece with an external thread or ballform requirement.
The machine base, sub-slides and headstock are each constructed of single-piece high quality
seasoned cast iron. Featuring a fully enclosed hood with a safety interlocked main operator access
door and service access panels the machine is easily accessible from all sides.
Its basic design embodies the latest technology available from the Siemens 840D SolutionLine CNC
control system and Siemens SINAMICS digital servo drive system thus providing the machine with the
dynamic performance and smooth operating characteristics required for high precision grinding
applications.
3.1 General layout

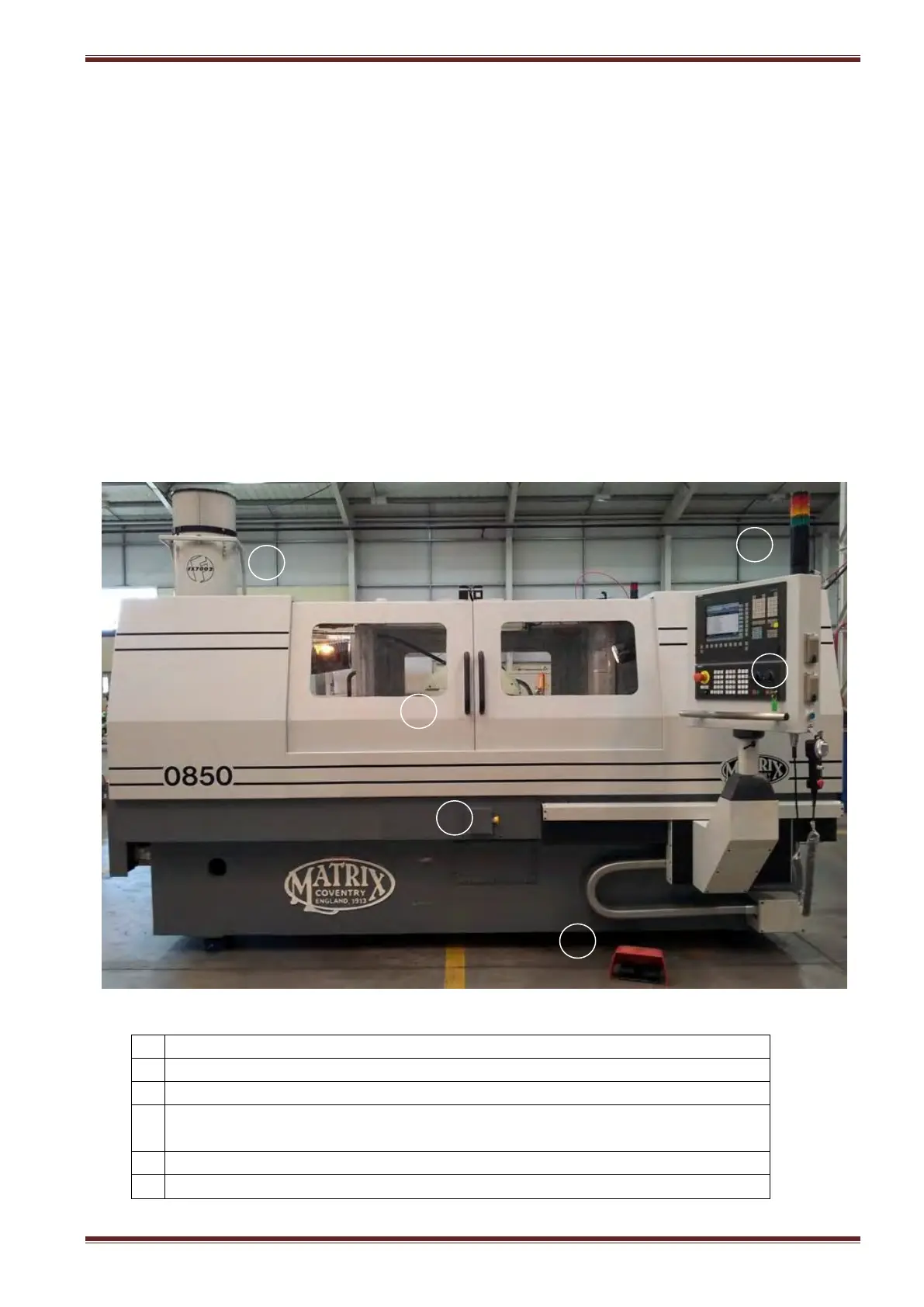

Front view of machine
1
Machine Control Console
2
Grinding wheel retract pushbutton
3
Power chuck open/close pedals (option)
4
Manual sliding operator access door (standard) with safety interlock
Auto sliding door (option)
5
ANDON light stack (option)
6
Fume extraction unit
1
3
4
5
6
2
