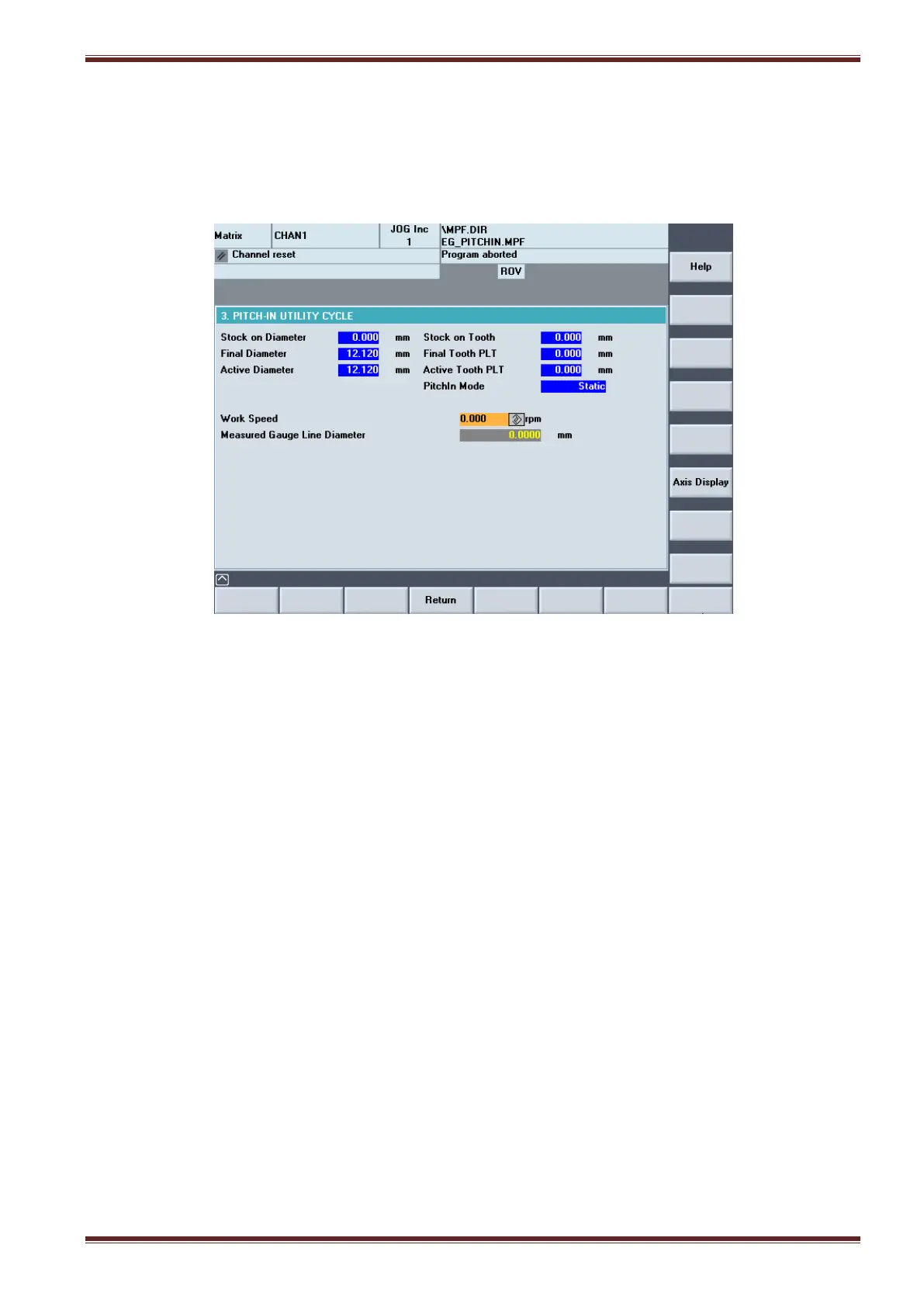

19.13 Pitch-IN Setting Cycle
[Custom > Matrix > Main Menu > Setting Cycles > Pitch-in Cycle]
Use this setting to synchronise the grinding wheel to the pre-cut thread or non-threaded workpiece.
19.13.1 Explanation of the Input Parameters
Work Speed
Input Range: 0 – 50 rpm
Rotational speed of the workpiece when performing dynamic pitch-in
Measured Gauge Line Diameter
Input Range: 0 – 999 mm
Diameter of the workpiece at the periphery (tip) of the grinding wheel.
