19.12 Probe system setup (option)
[Custom > Matrix > Main Menu > Setting Cycles > Set Work Datums > Probe Cycle]
If the machine is fitted with the probe system option then a number of offset values relating to the
unit must be set in the probe setup screen before the probing system can be used in the automatic
machine cycle.
The probe setup screen is accessed from the Work Datum setting cycle screen.

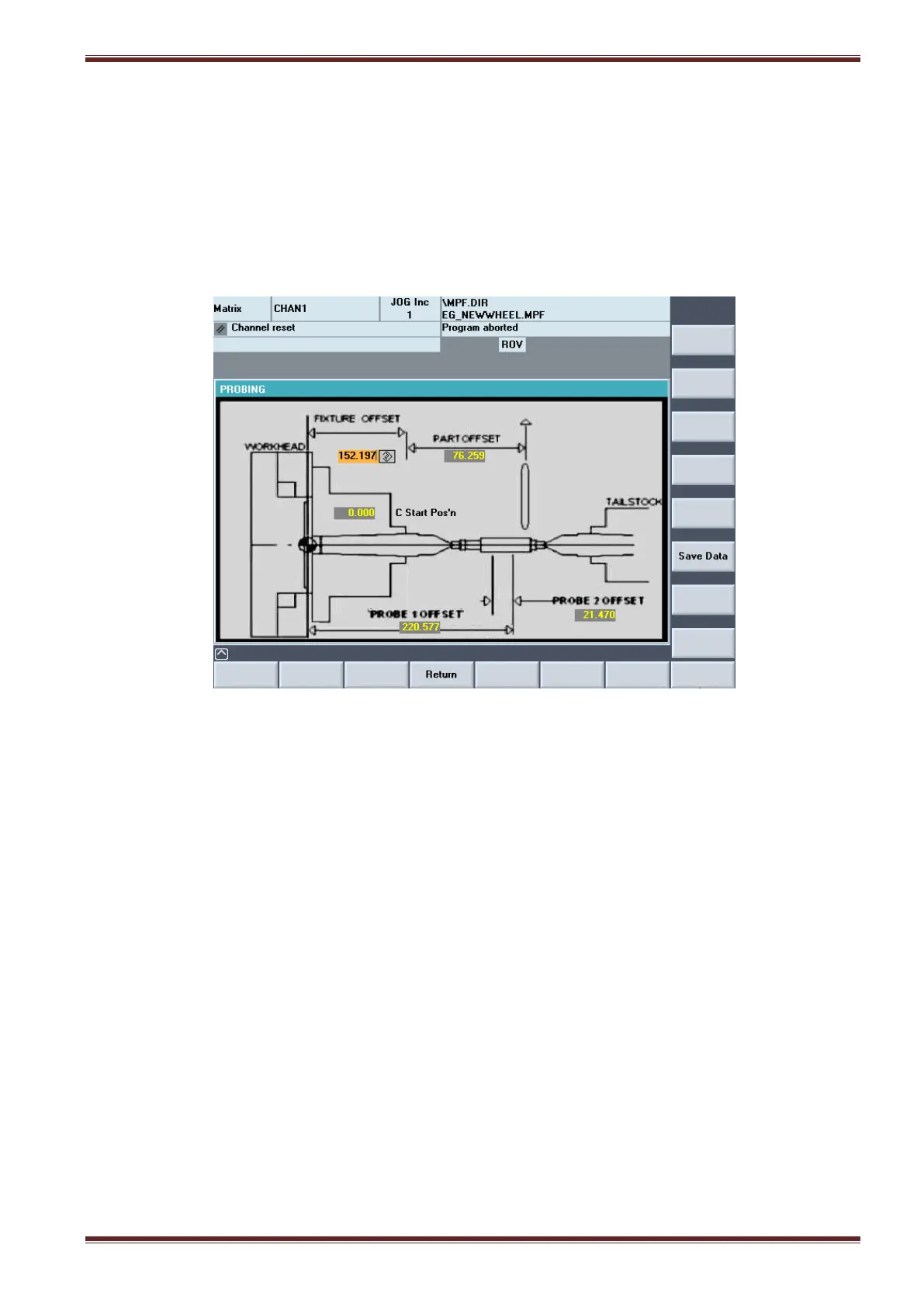

19.12.1 Explanation of the Input Parameters
Fixture Offset
Input Range: 0 – 200 mm
Distance from the spindle nose datum to the fixture datum face.
Part Offset
Input Range: 0 – 400 mm
Distance from the fixture datum face to the start grind position (Z)
Probe 1 Offset
Input Range: 0 – 340 mm
Distance from the spindle nose datum to the Probe 1 centerline
Probe 2 Offset
Input Range: 0 – 100 mm
Distance between the centre of Probe 1 and Probe 2
